FC Connectors

Threaded screw-on 2.5mm ceramic ferrule connector.

The FC Series Fiber Optic Connector is a threaded screw-on connector featuring a ceramic ferrule assembly. Available in single-mode and multimode variants across 0.9mm and 2.0/3.0mm cable diameters in both UPC and APC polishing types.

Need a quote or technical advice? Our team responds within one business day.

Request a Quote Email Enquiry

Key Features

Ceramic ferrule — Ceramic SM UPC, Ceramic SM APC, Ceramic MM PC
Available in SM/UPC (Blue), SM/APC (Green), MM (Beige), OM3 (Aqua), OM4 (Violet)
Cable diameter options: Φ0.9mm, Φ2.0mm, Φ3.0mm

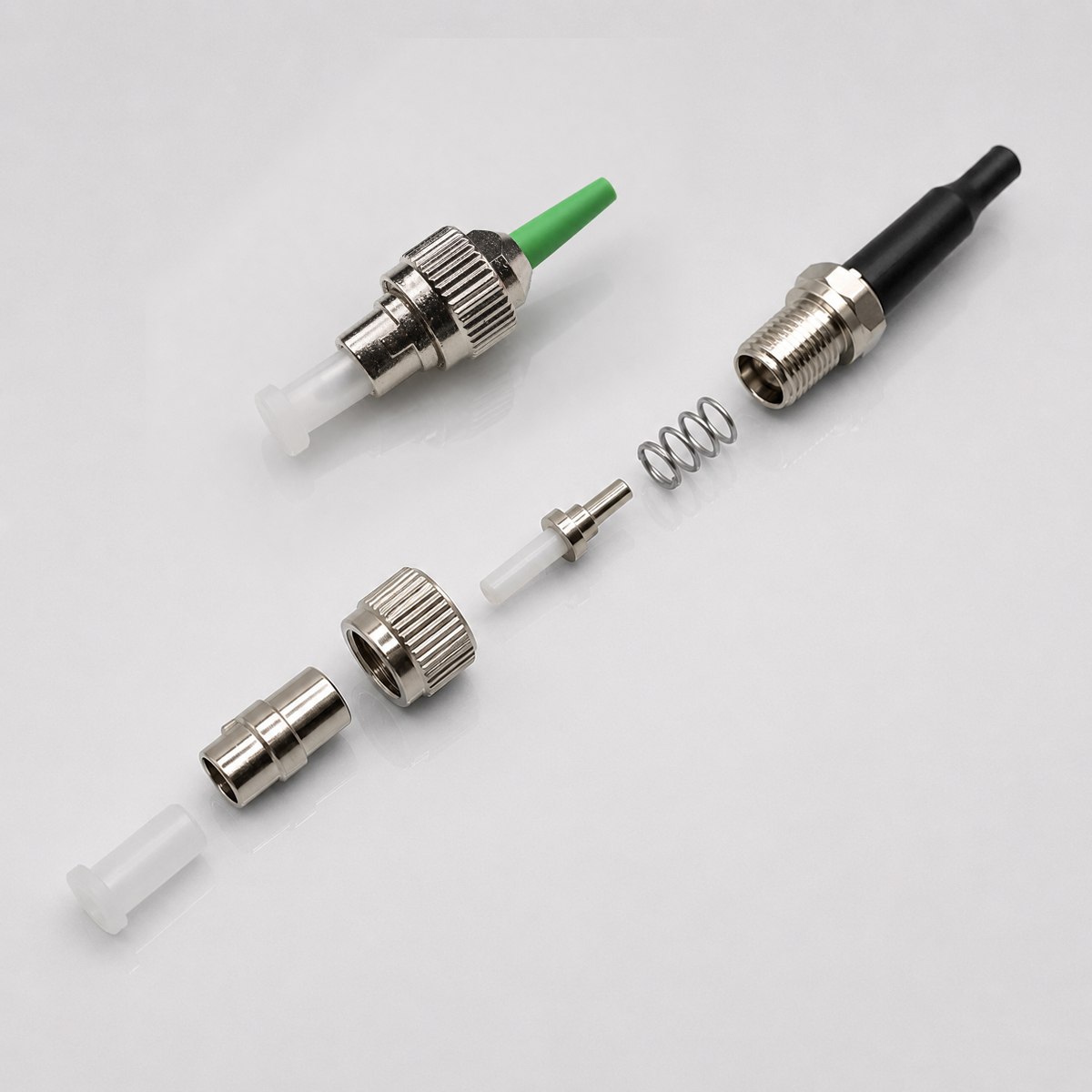

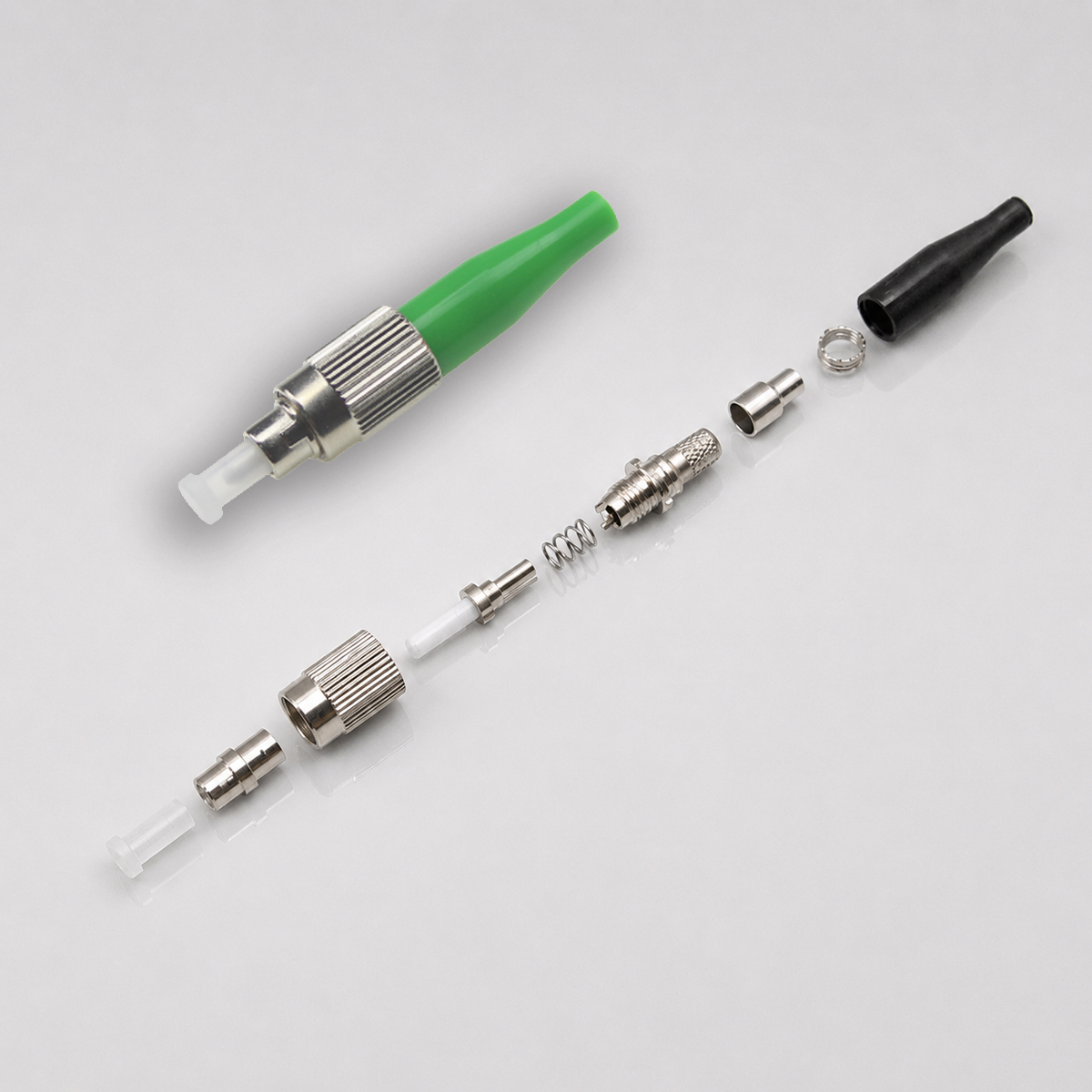

Available connector formats: FC 0.9mm Connector (30.5±2mm length), FC 2.0/3.0mm Connector (42±2mm length)
Available in 12 standard colours — customisable on request
Colour options: Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Pink | Aqua

Use Cases

Applications & Deployments

Optical test and measurement equipment

Industrial and manufacturing fiber networks

Research and laboratory optical systems

Telecom network equipment with threaded port requirements

High-vibration environment deployments

Precision optical instrument connections
