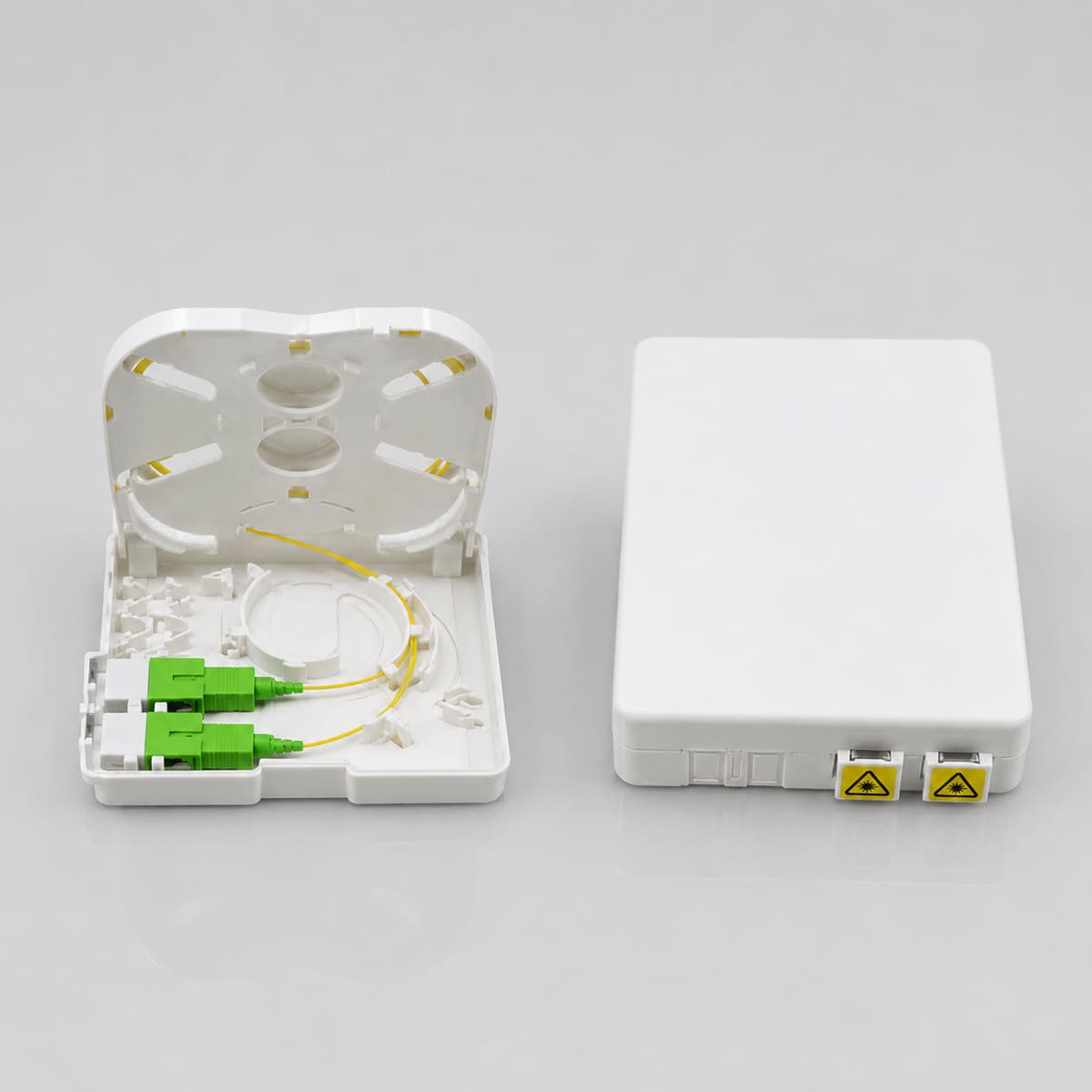

Wall Outlet Box

Compact surface-mounted FTTH termination enclosure.

The Wall Outlet Box is a compact, surface-mounted fiber optic termination enclosure designed for indoor and residential FTTH installations. Engineered for wall-mount or DIN rail deployment, the Wall Outlet Box provides a clean, accessible termination point for fiber optic drop cables at the subscriber end — accommodating Adaptors, splice trays, and pigtail routing within a slim, discreet housing. Available in multiple configurations to suit varying port counts and installation requirements, the Wall Outlet Box delivers a reliable, professional-grade termination solution for last-mile fiber deployments.

Need a quote or technical advice? Our team responds within one business day.

Request a Quote Email Enquiry

Key Features

Fixing: screwed on the wall, on a fitted wall box, ona DIN rail with an Adaptor included
6 cable entries — right, left, under, below, and back
Cable diameter: 2.0mm to 6.0mm with cable fastening clip
Output connector types: SC / LC
Fiber routing bending radius: 15mm
Routing zone: up to 1.5m for 250µm / 1m for 900µm
Splicing support: up to 4 individual heat shrinks of 40mm or 45mm for fusion splicing
Operating temperature: -25°C to +70°C

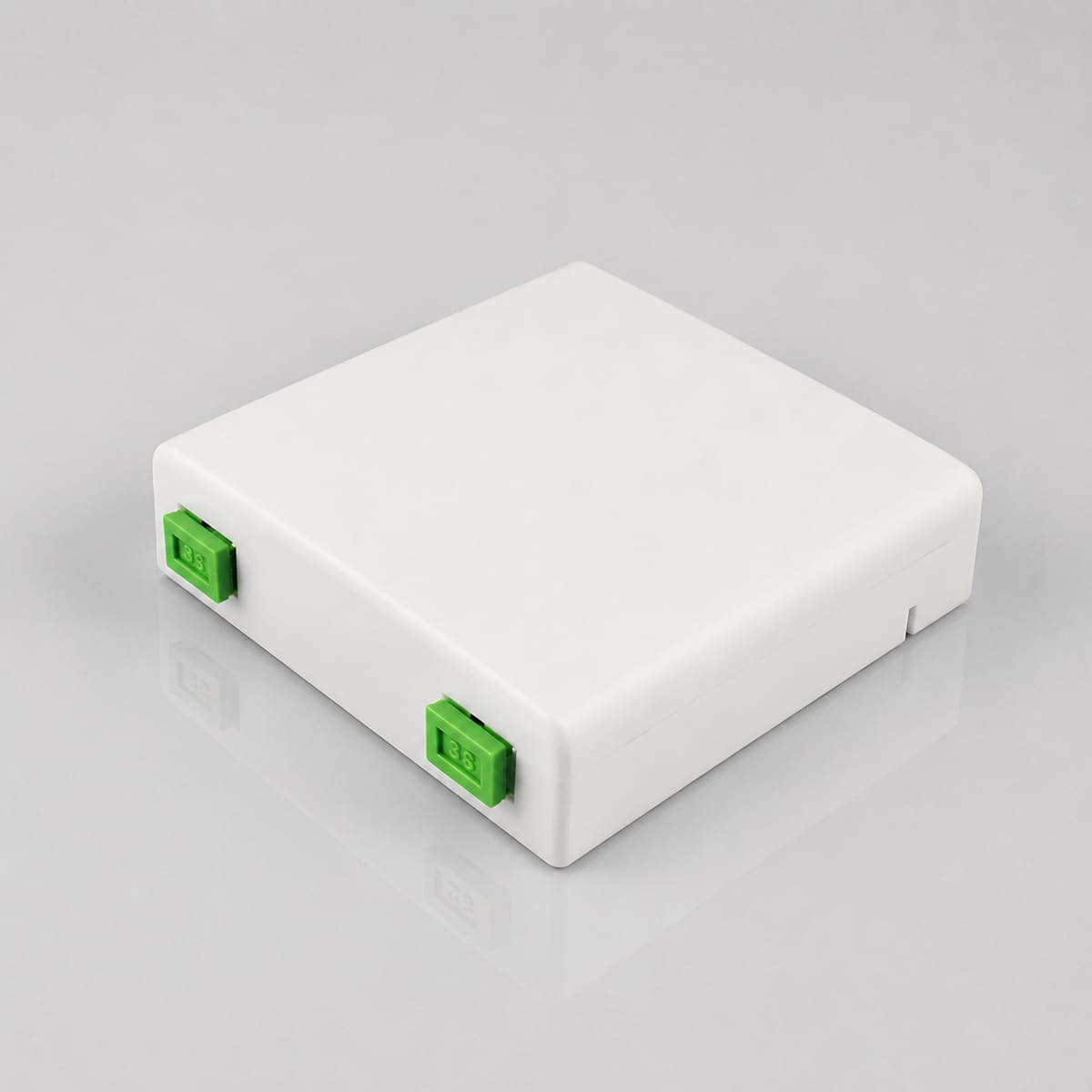

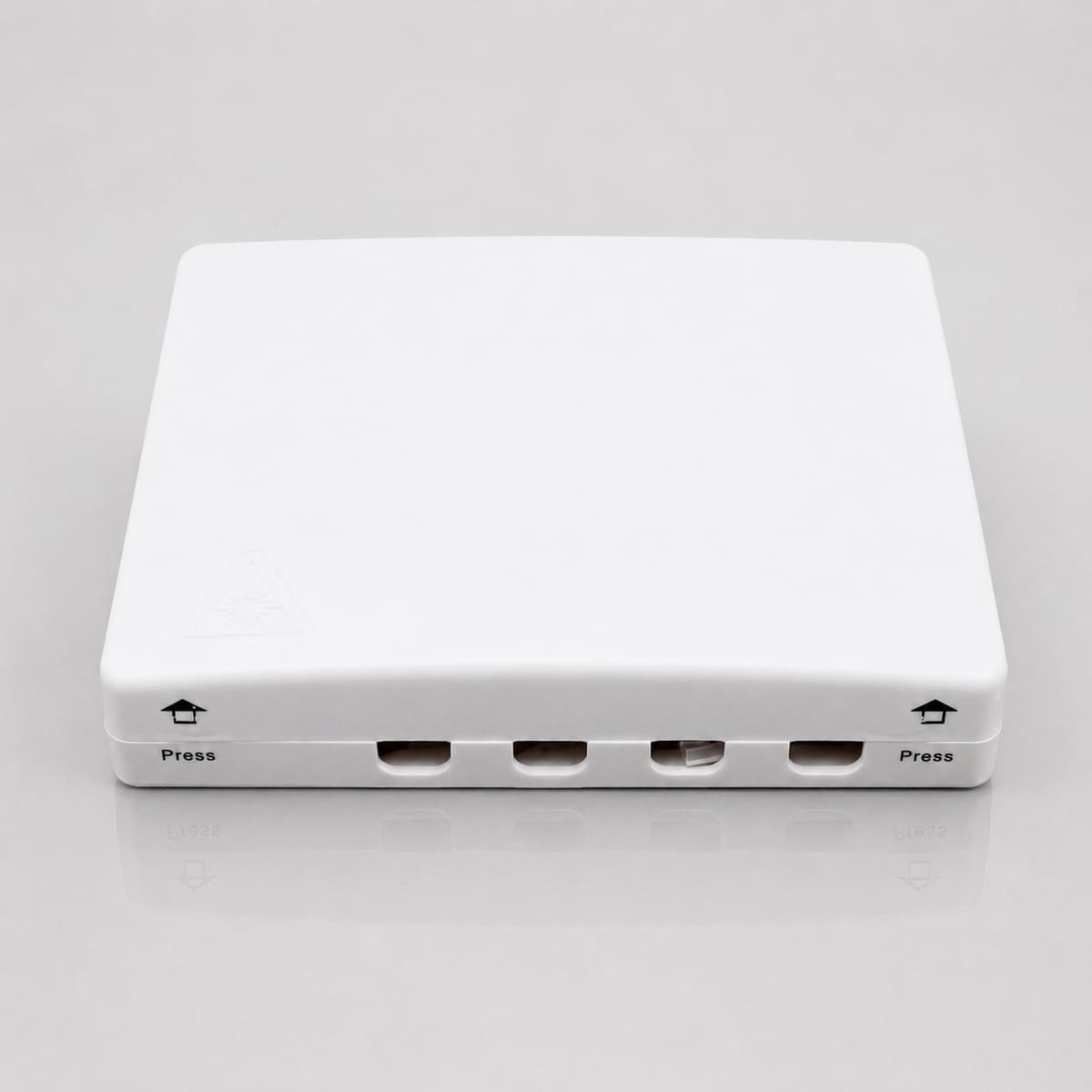

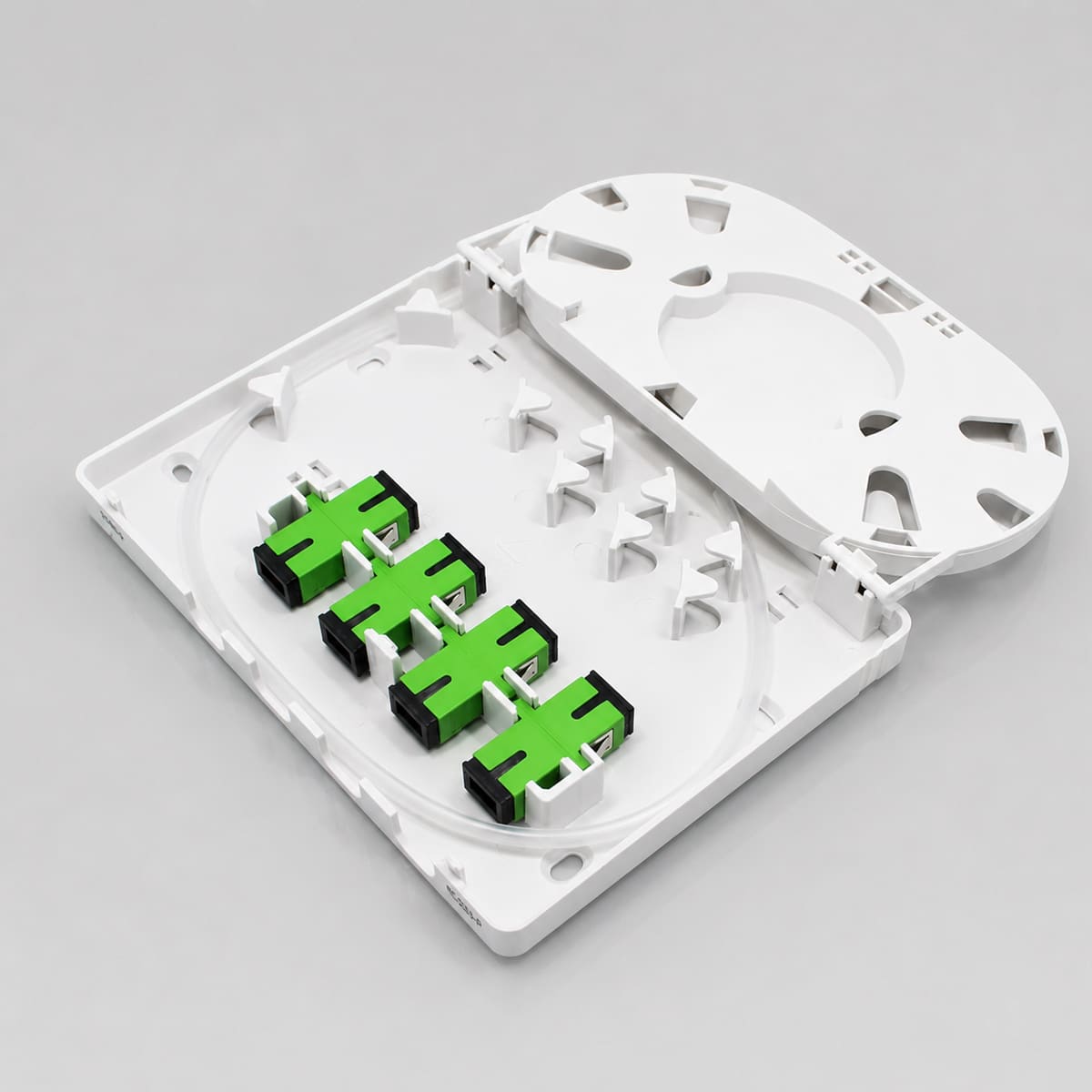

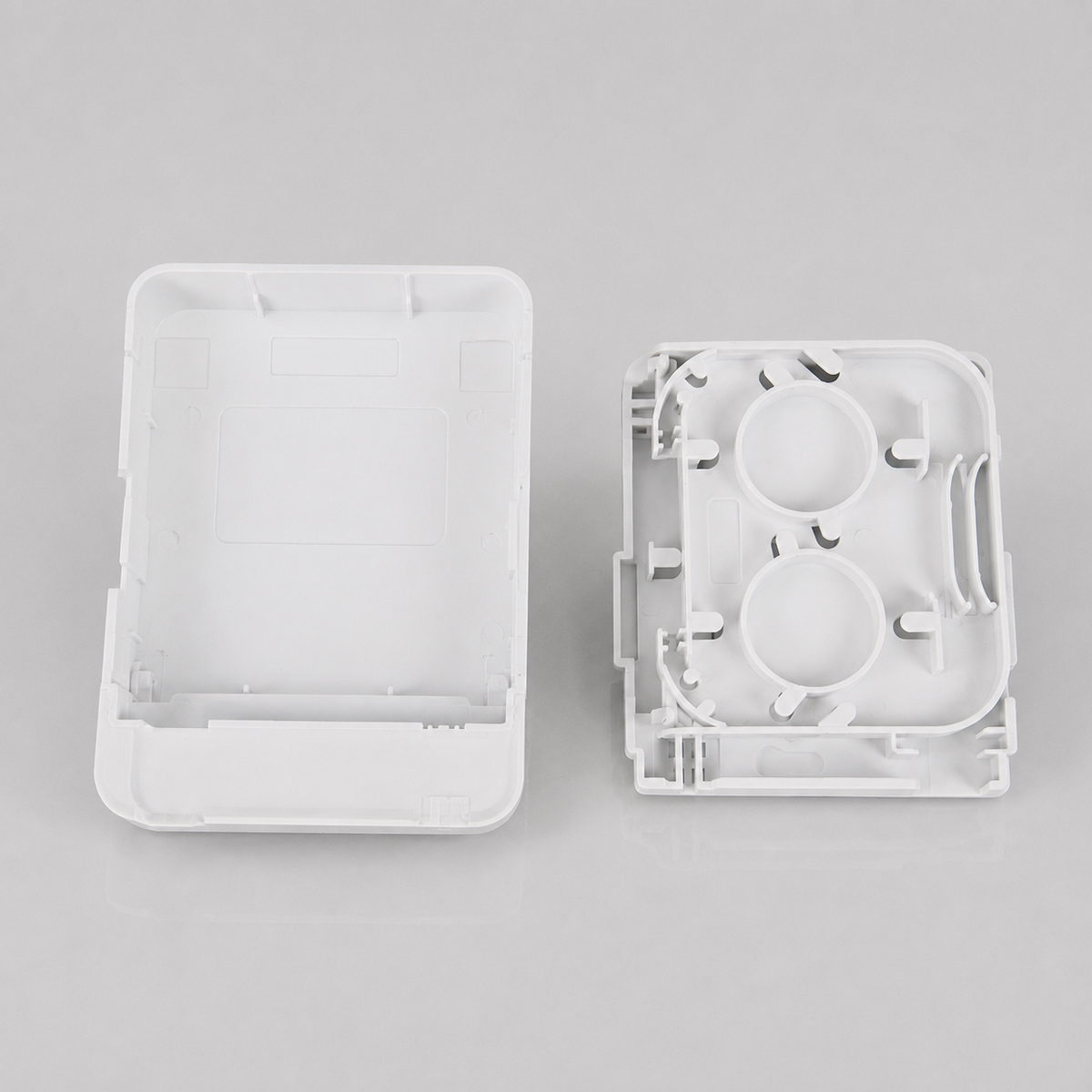

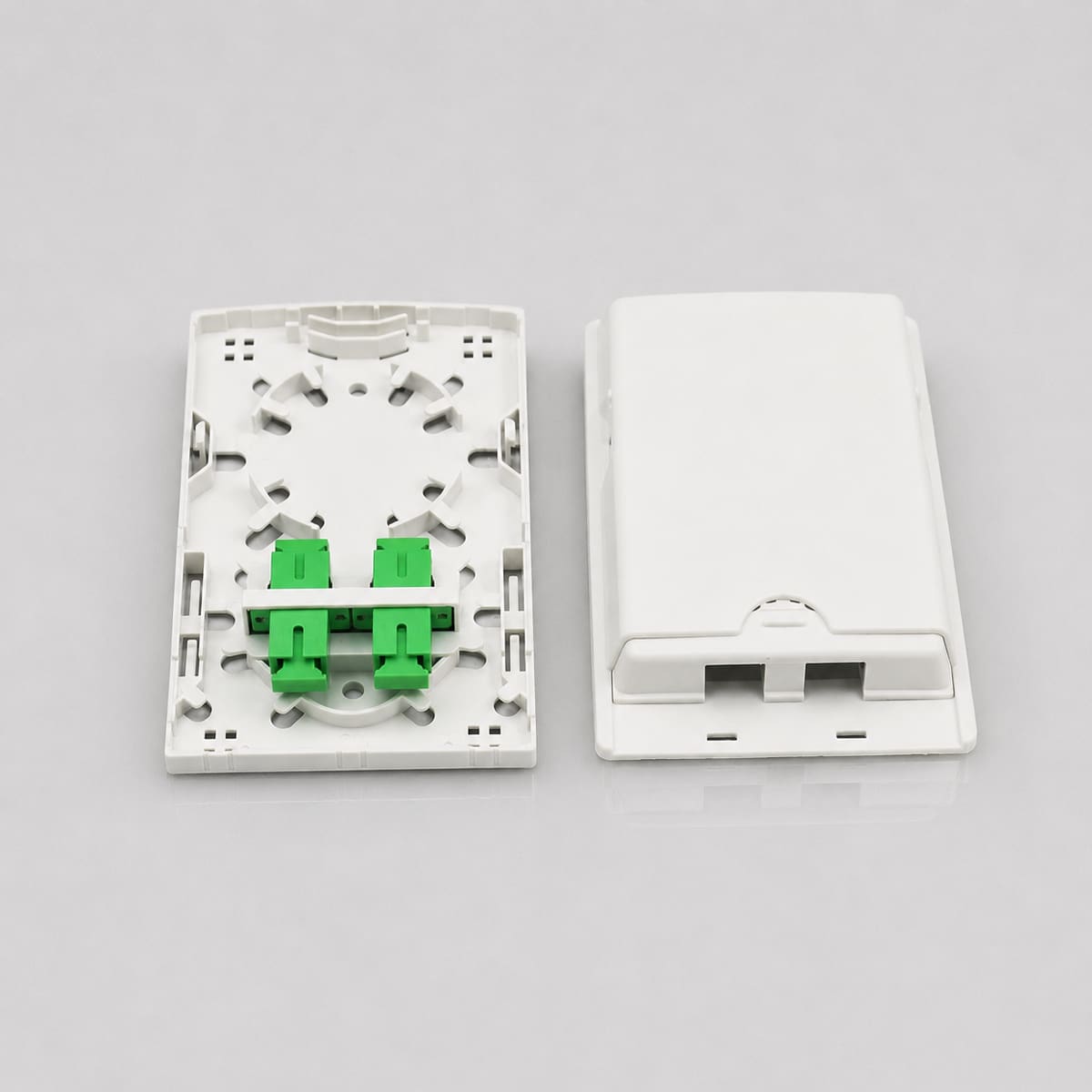

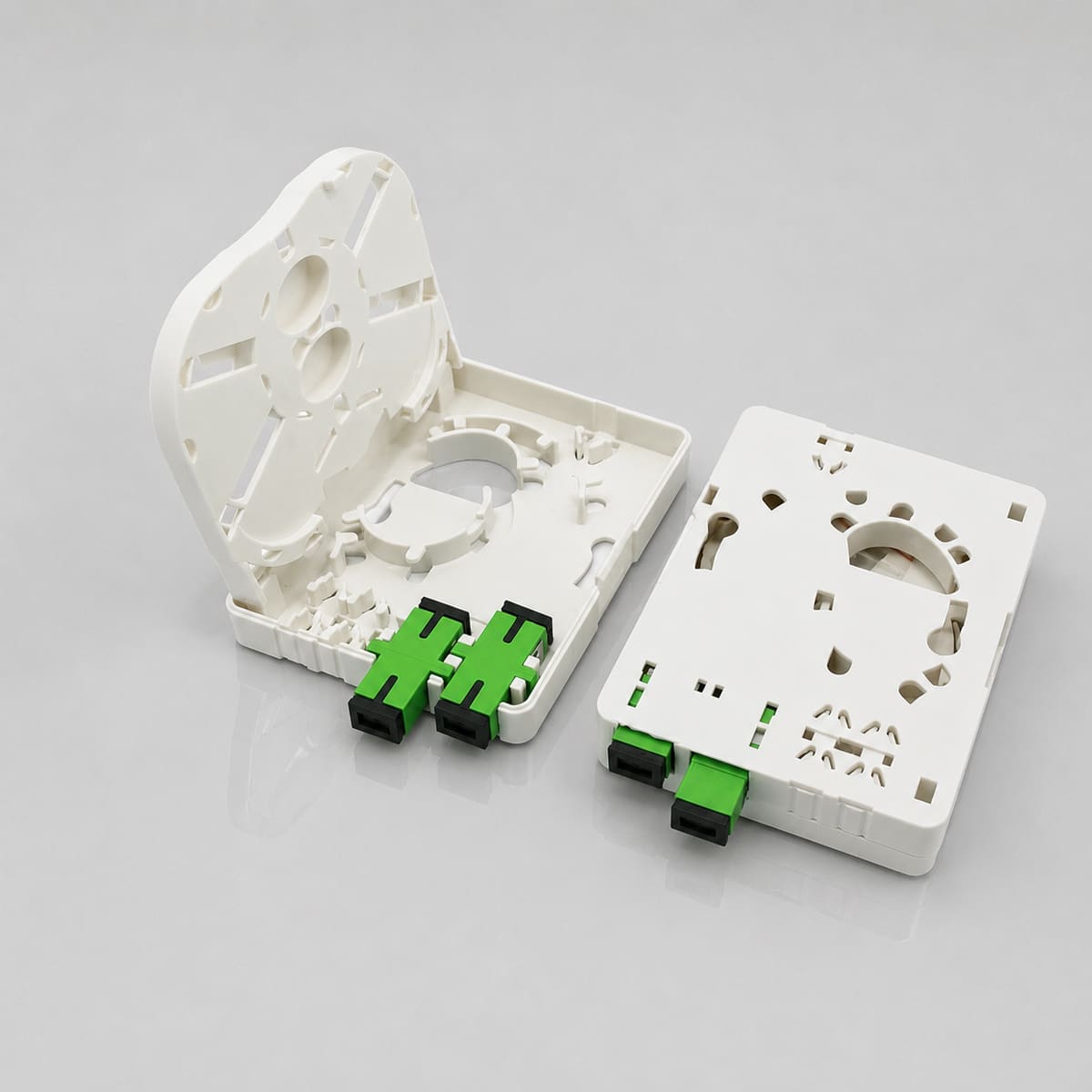

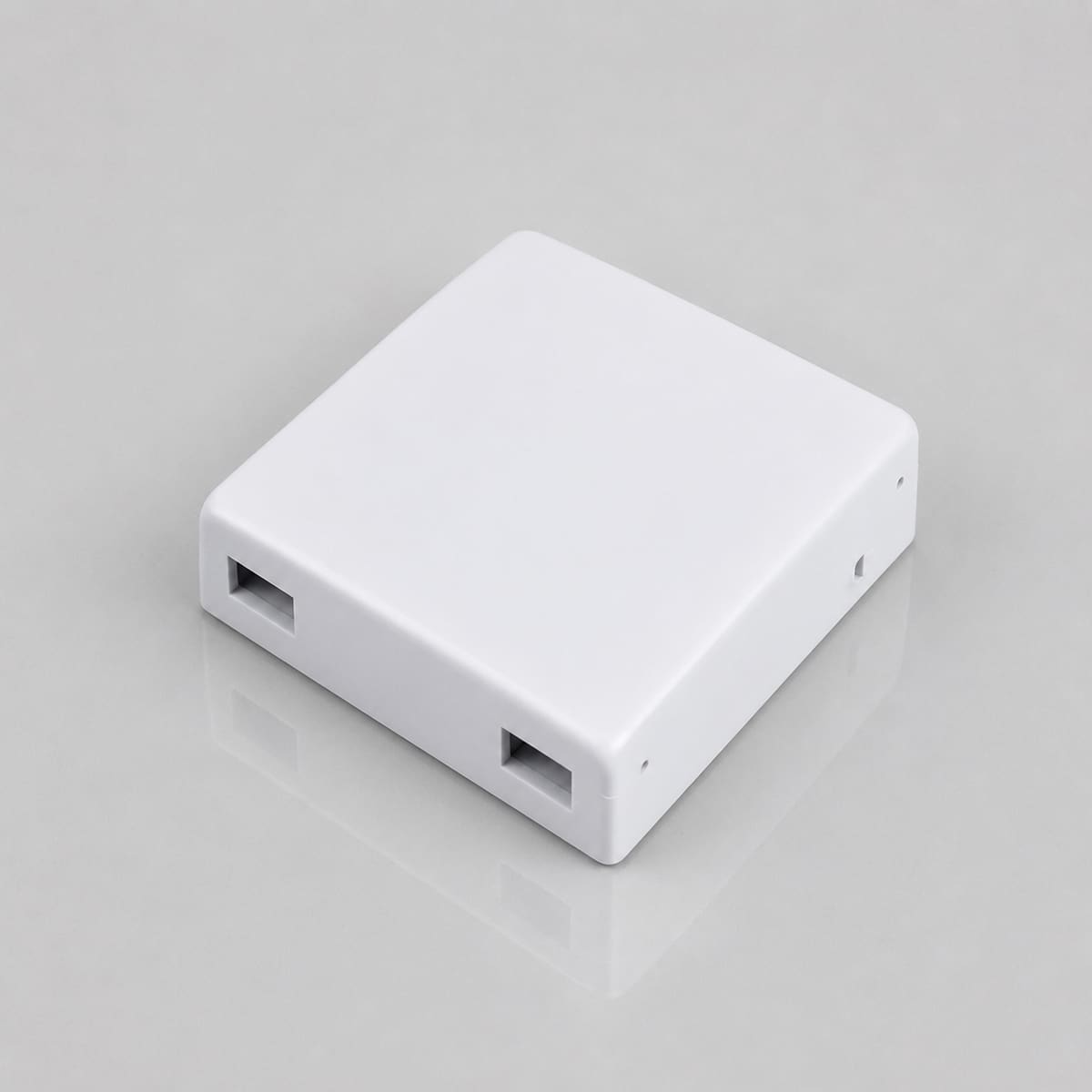

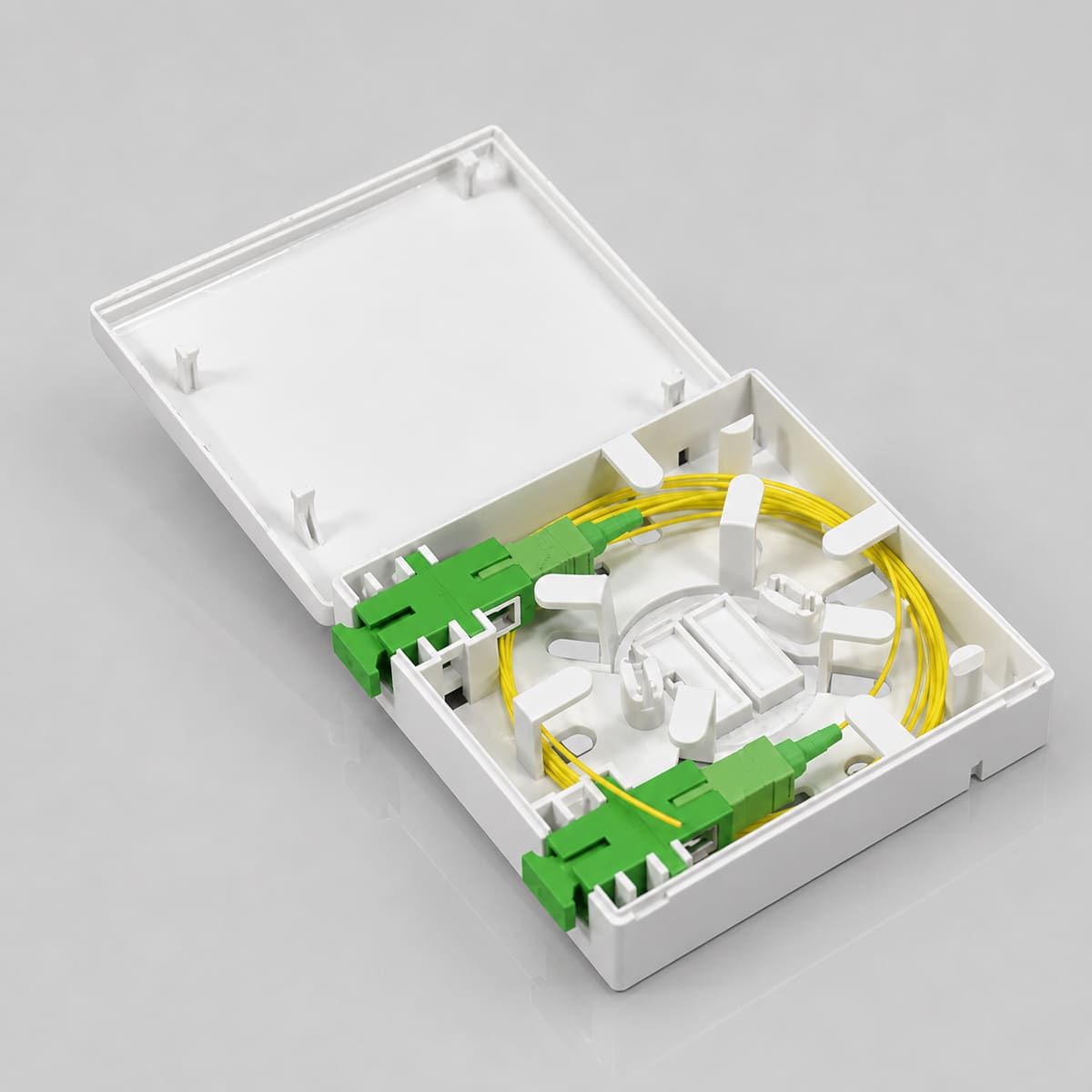

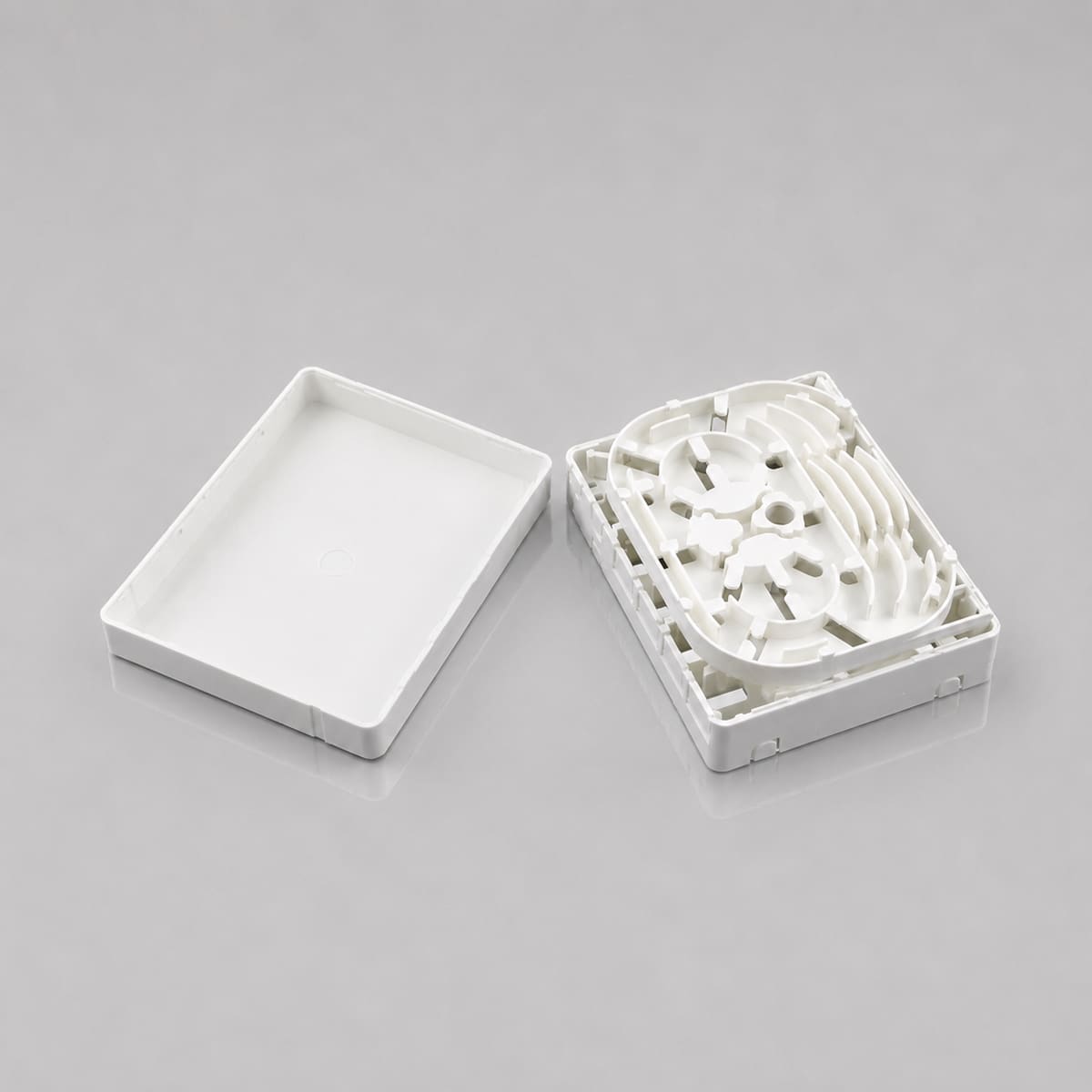

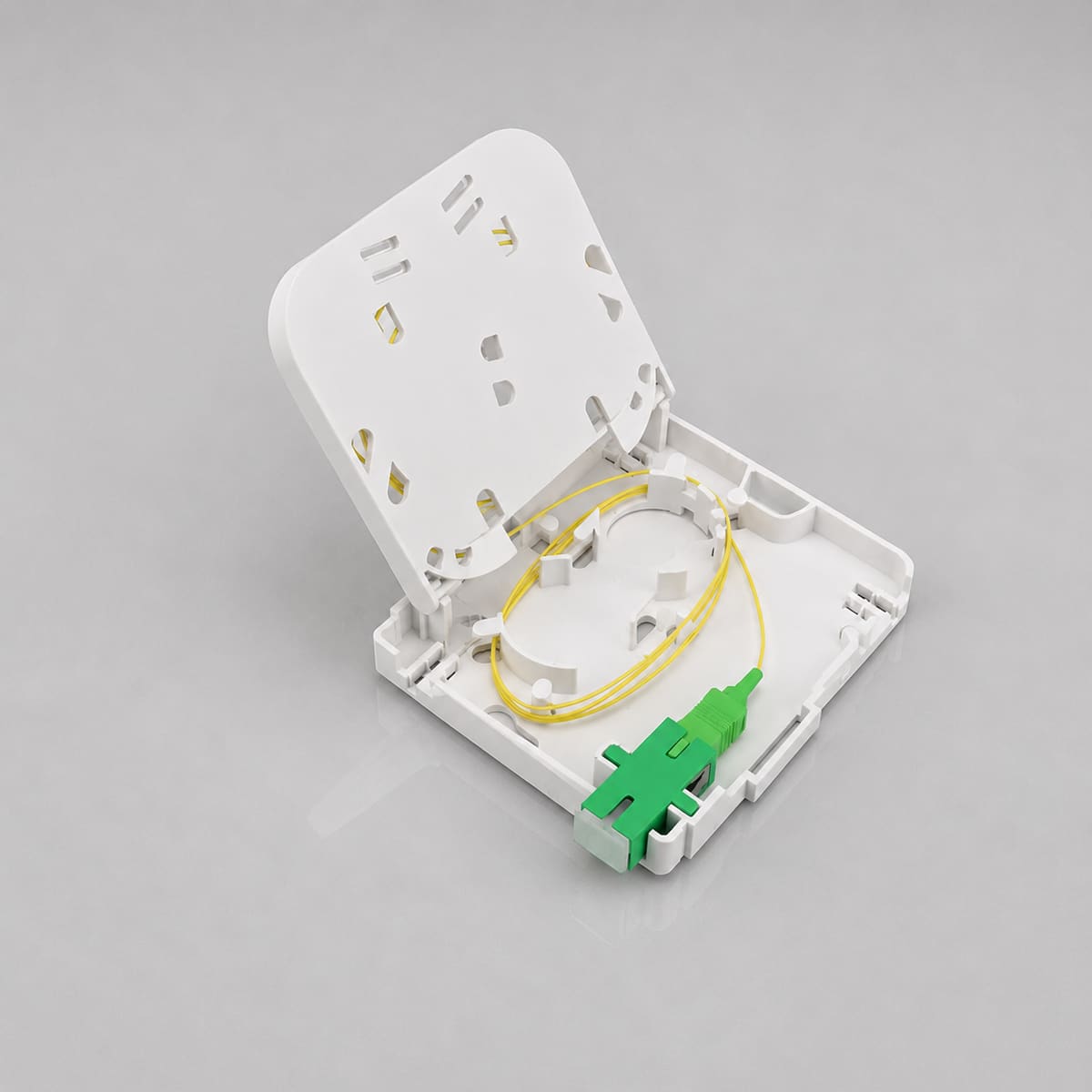

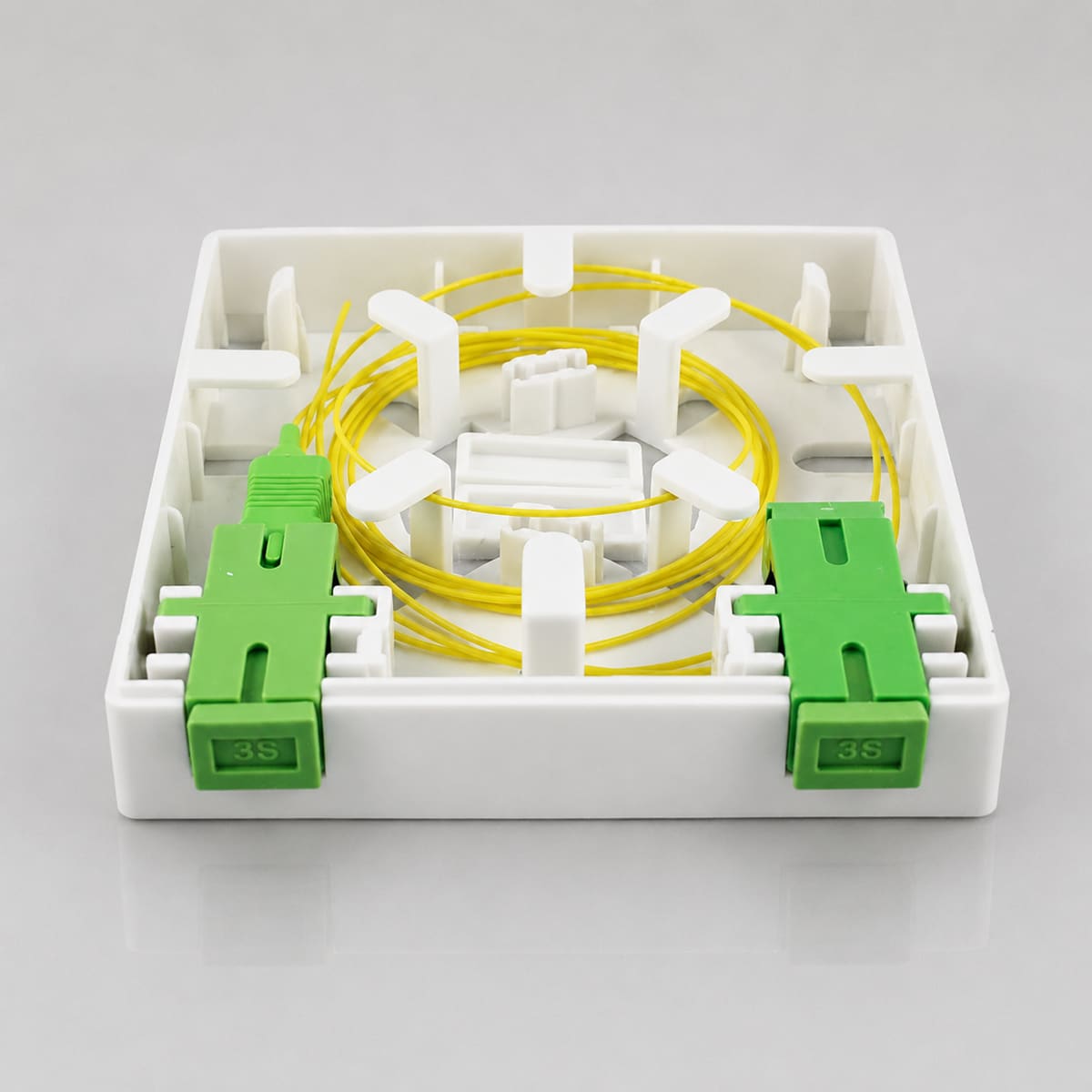

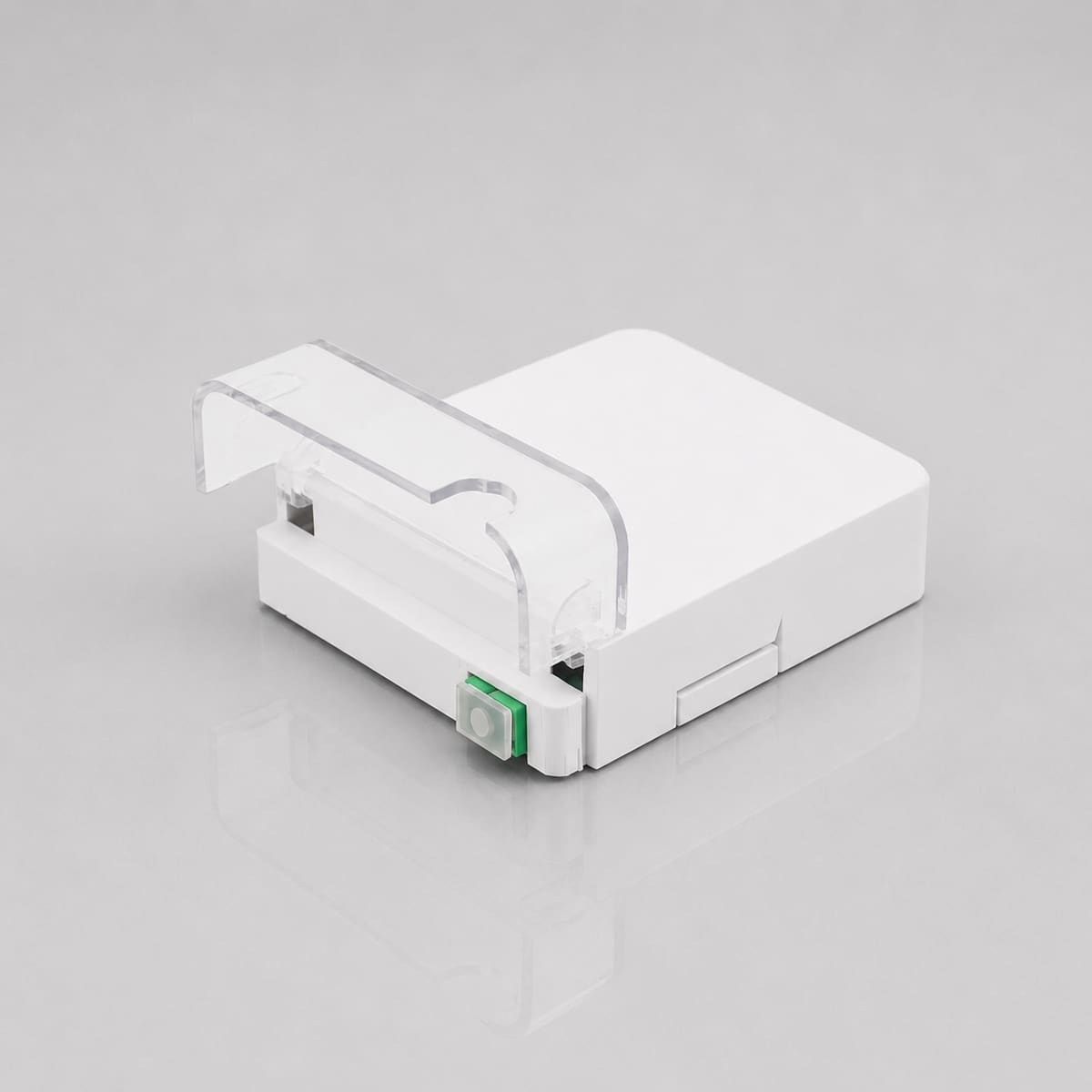

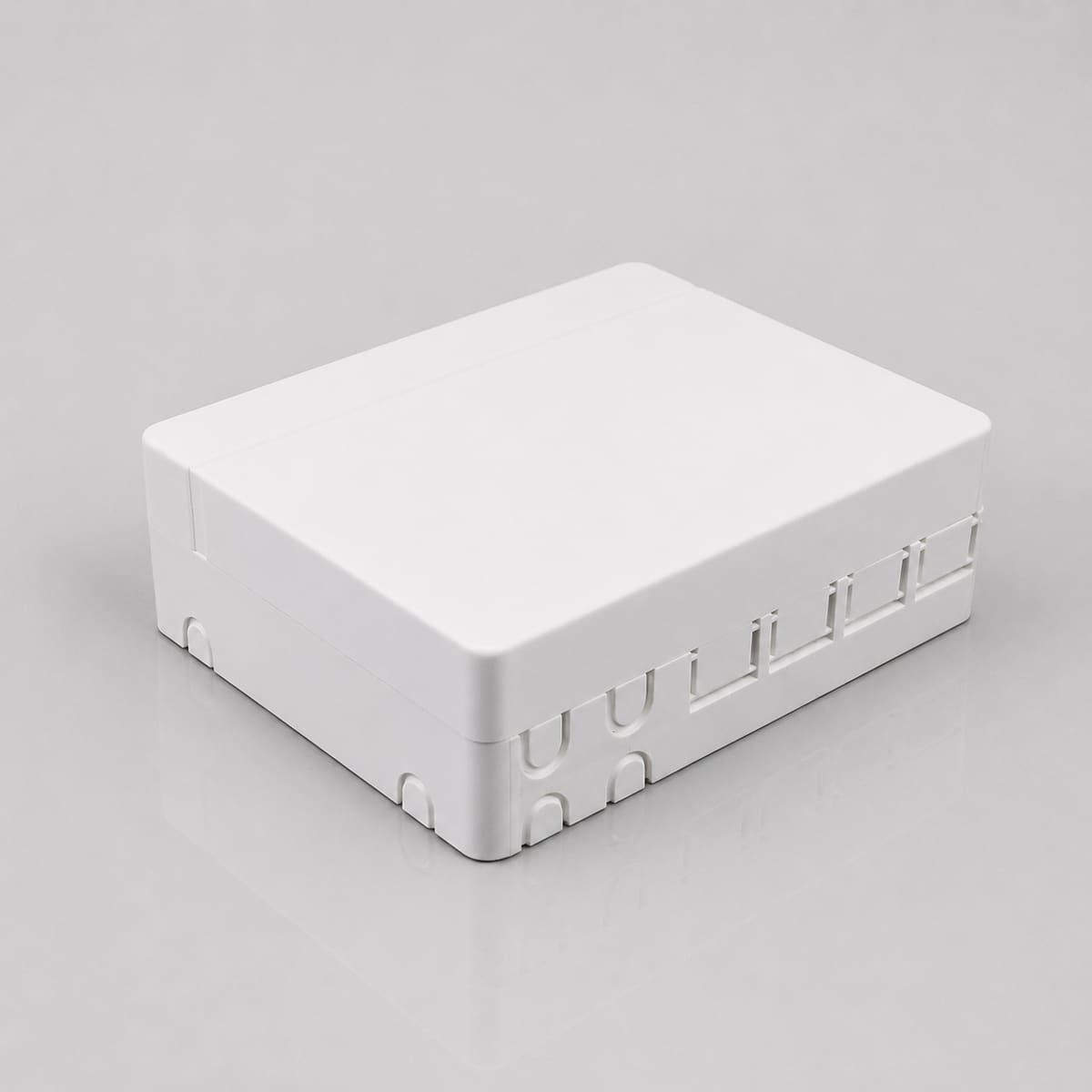

Available models: WBO1a, WBO2a, WBO2b, WBO2c, WBO2d, WBO2e, WBO2f, WBO4a, WBO4b
