Fiberglass Structural Profiles

Pultruded structural profiles — strength of steel, freedom from corrosion.

FRP and GRP structural pultruded profiles combine glass fibre reinforcement with a resin matrix, which undergoes continuous formation and curing to yield a product with remarkable strength and resilience. The mechanical properties of GRP structural pultruded profiles are on par with — and in many cases better than — steel, while being a fraction of the weight and completely corrosion-free. Available in an extensive selection of shapes and sizes — including U Channel, I-Beam, H-Beam, Square Box, Round Tube, Angle, Rod, Handrail Profile, and many customised sections — FRP structural profiles are suitable for a wide range of industrial and construction applications where conventional steel or wood would corrode, degrade, or require excessive maintenance. As standard, Isophthalic polyester resins are used for the matrix. Isophthalic Resin offers moderate corrosion resistance and fire resistance; Vinyl Ester Resin offers extreme corrosion resistance and fire resistance.

Need a quote or technical advice? Our team responds within one business day.

Request a Quote Email Enquiry

Specifications

Tensile Stress (ASTM D-638)	206.8 MPa lengthwise / 48.2 MPa crosswise
Tensile Modulus (ASTM D-638)	17.2 GPa lengthwise / 5.5 GPa crosswise
Compressive Stress (ASTM D-6641)	206.8 MPa lengthwise / 103.4 MPa crosswise
Flexural Stress (ASTM D-790)	206.8 MPa lengthwise / 68.9 MPa crosswise
Flexural Modulus (ASTM D-790)	11 GPa lengthwise / 5.5 GPa crosswise
Barcol Hardness (ASTM D-2583)	45
24-Hour Water Absorption (ASTM D-570)	Max 0.6%
Density (ASTM D-792)	1.72–1.95 gm/cc
Glass Content (ASTM D-2584)	Min 55%
Limiting Oxygen Index (ASTM D-2863)	Min 30%
Flame Spread (ASTM E-84)	Less than 25 mm
Vertical Burn Test (UL 94)	V0

Key Features

Exceptional Mechanical Strength — Mechanical performance on par with or exceeding steel in many load conditions
100% Corrosion-Free — No rust, no surface treatment, no painting required
Light Weight — Significantly lighter than steel; reduces structural load, installation cost, and handling requirements
Electrical Non-Conductivity — Safe for use near electrical equipment and installations
Thermal Non-Conductivity — Low thermal transfer
Flame Retardant — Low flammability; suitable for fire-sensitive environments
Low Life Cycle Cost — Minimal maintenance; no repainting or corrosion treatment over service life
Easy Fabrication — Can be cut, drilled, and assembled on-site using basic tools; no welding required
EMI / RFI Transparent — Suitable for telecom, radar, and signal-sensitive infrastructure
Custom Sections Available — Standard profiles or custom cross-sections manufactured to project specifications

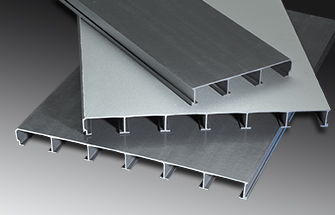

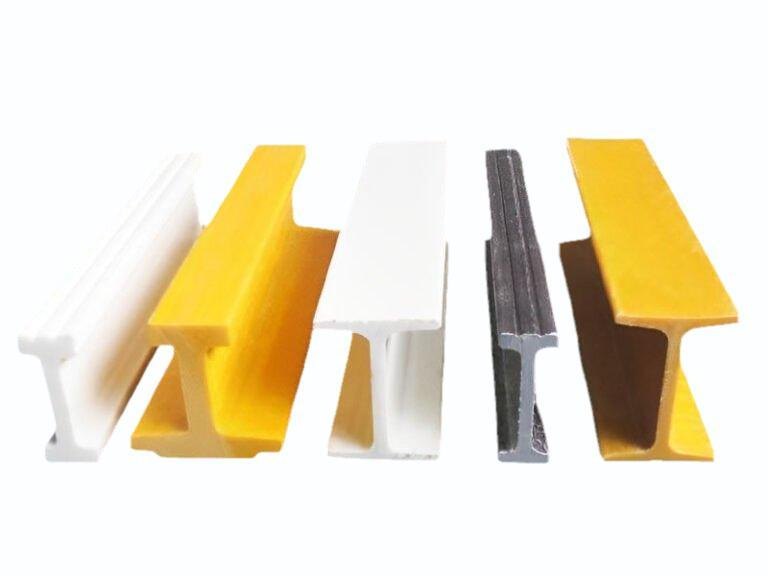

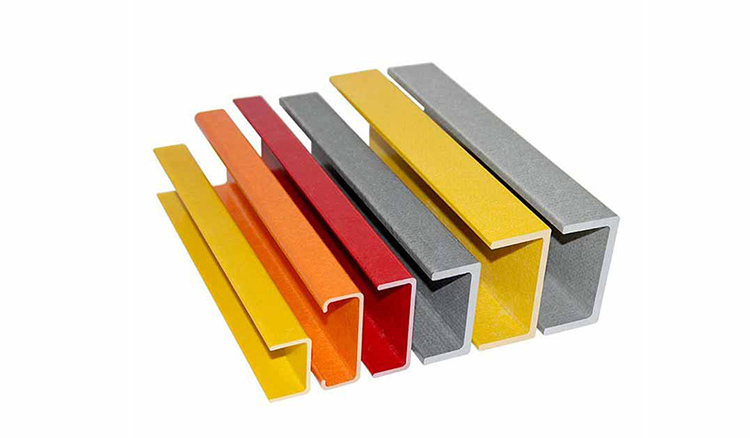

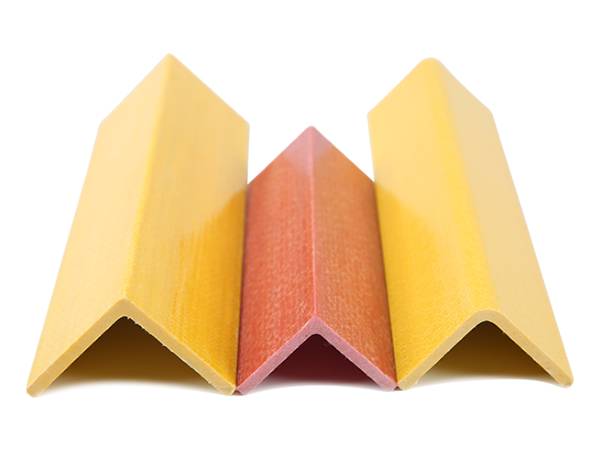

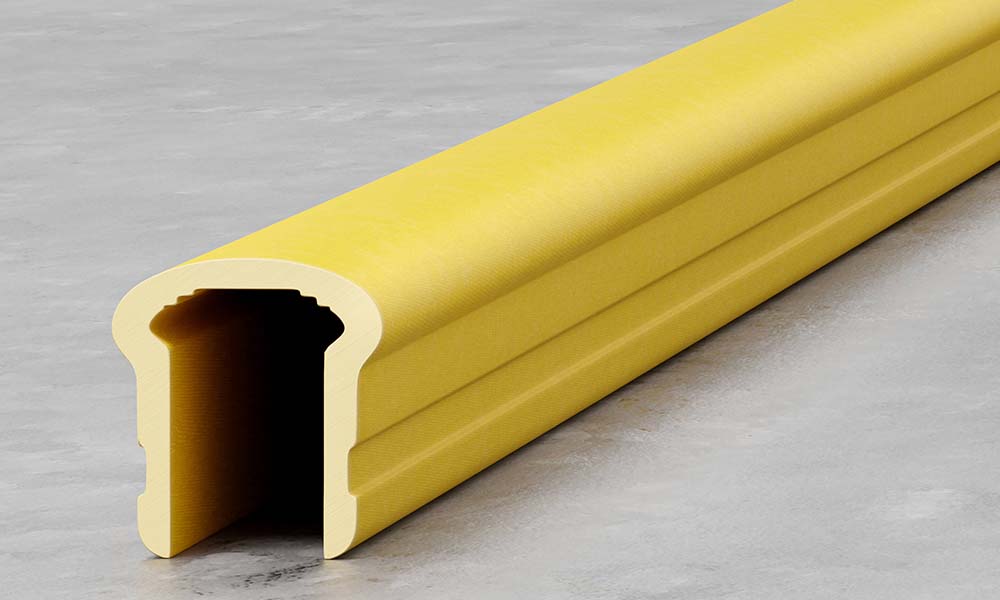

Profile Types Available: U Channel, I-Beam, H-Beam, Square Box / Tube, Round Tube, Angle, Rod, Handrail Profile, Deck Panels, Custom Sections
