FMS Rack Mount

FMS

Modular rack-mount FMS, 2U/3U/4U, fits 19" and 21" racks.

The Rack Mount Fibre Management System is a modular enclosure that provides cross-connect and interconnect capabilities for splicing and terminating outdoor cables and FTTH drop cables in a fibre access network. It integrates three main functions of fibre splicing, cable winding and storing, and interface management. Comprising two key components — Fibre Termination and Fibre Distribution — within the same frame assembly, the Rack Mount FMS delivers high performance and stability, making it a reliable and efficient solution for managing fibre optic connections from outside the fibre rack to the fibre routers. Available in 2U (24F), 3U (48F), and 4U (96F) configurations with SC/APC adaptors, the Byteworx Rack Mount FMS is engineered to fit any standard 19-inch or 21-inch rack — providing organised, high-density fibre management across telecom, enterprise, and data centre environments.

Need a quote or technical advice? Our team responds within one business day.

Request a Quote Email Enquiry

Specifications

FMS 24F Rack Mount	2U \| 24 Fibres \| SC/APC
FMS 48F Rack Mount	3U \| 48 Fibres \| SC/APC
FMS 96F Rack Mount	4U \| 96 Fibres \| SC/APC

Key Features

High-density multifunctional unit — available in fixed or sliding type rack mount made of high-quality CRCA steel
Fits comfortably into new and existing interconnect, cross-connect, and co-location environments
Removable top cover with sliding tray for quick access to service connections
All models allow multiple openings for cable entry and exit
Slide-out mechanism designed to provide excellent cable management and organise cable slack
Individual and modular coupler plates with GLIDE mounting system for maximum protection of optical components
Excess length of pigtail storage provided inside the shelf to maintain the bend radius of the pigtail
100% tested for mechanical and optical characteristics
Main frame fixed to the rack with only the inside tray extending outside — improving stability of the system
Provides easy rack front access to rear compartment and jumpers
Compatible with FC, SC, LC, LC/APC, ST, SC/APC, and E2000 connector styles
Suitable for standard 19-inch and 21-inch racks

Use Cases

Applications & Deployments

Backbone and telecommunications room installations

Main distribution room and outside plant deployments

Mining and military applications

Road and rail infrastructure

Transmission boxes for substations, CCTV, and FTTH applications

Factory and automation applications

Data centres and network operation centres

Enterprise and campus fibre network distribution frames

BharatNet and government broadband infrastructure

Smart city and urban fibre network hubs

FMS Rack Mount

FMS Rack Mount

Specifications

Key Features

Models & Variants

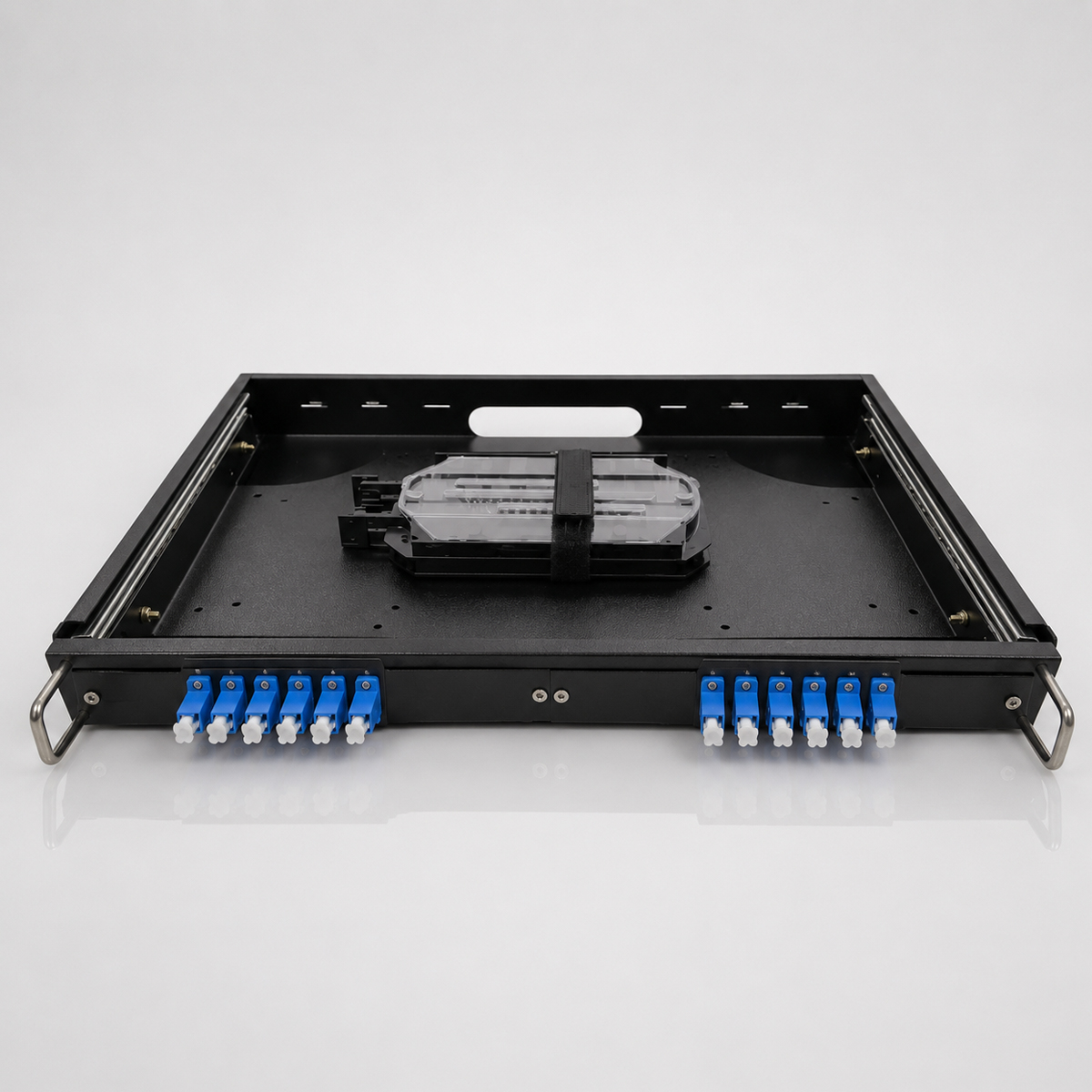

FMS rack mount 12F

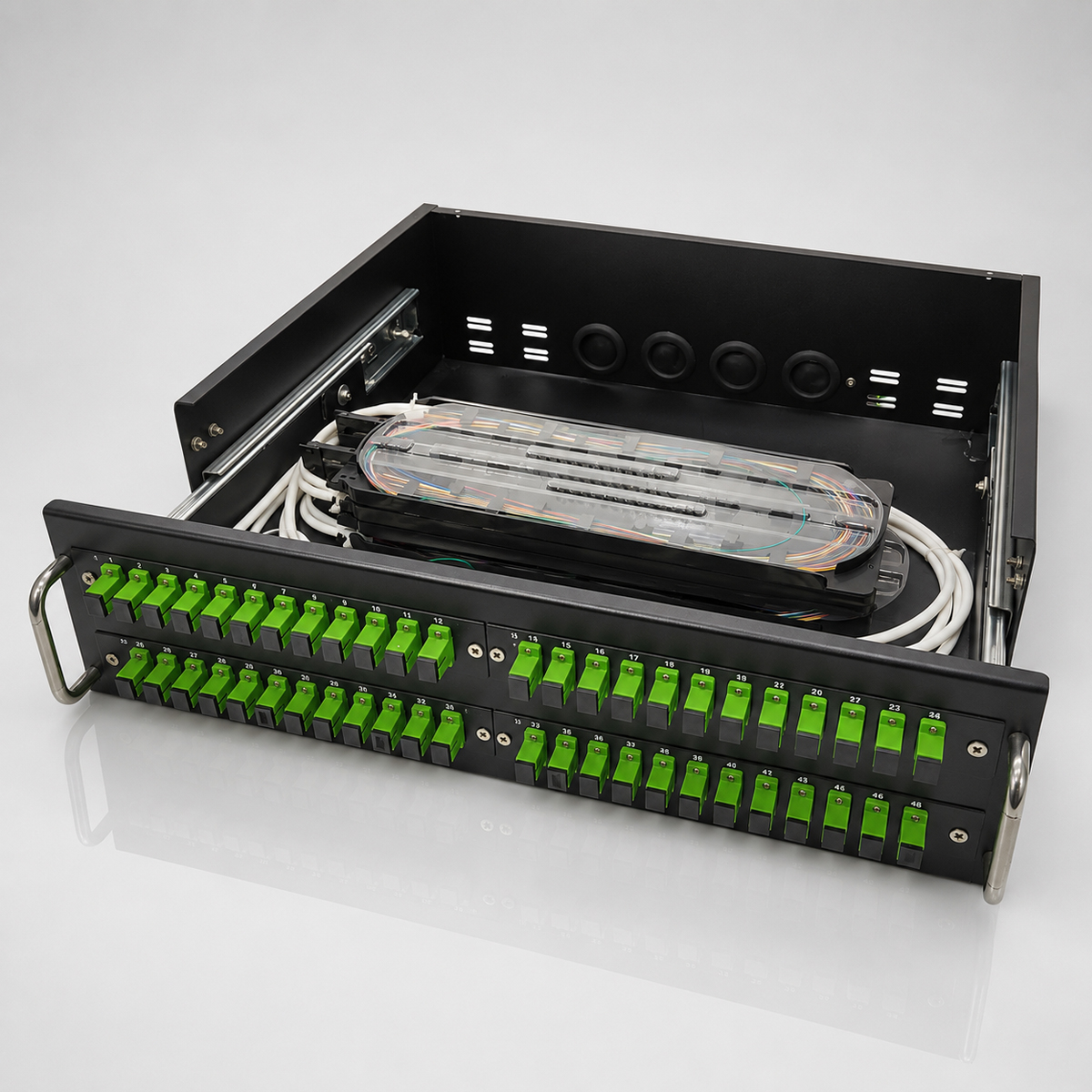

FMS rack mount 48 F

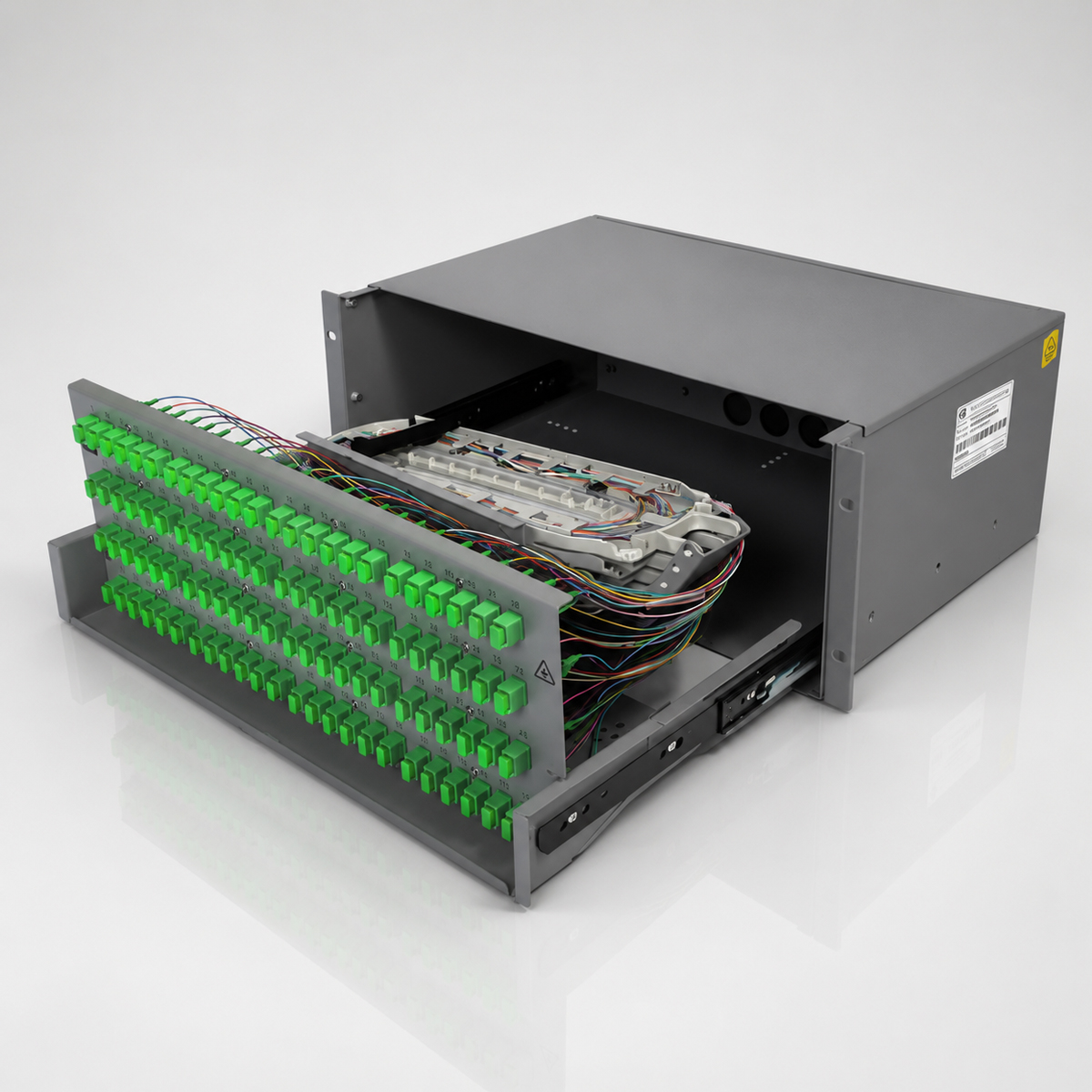

FMS rack mount 96F
