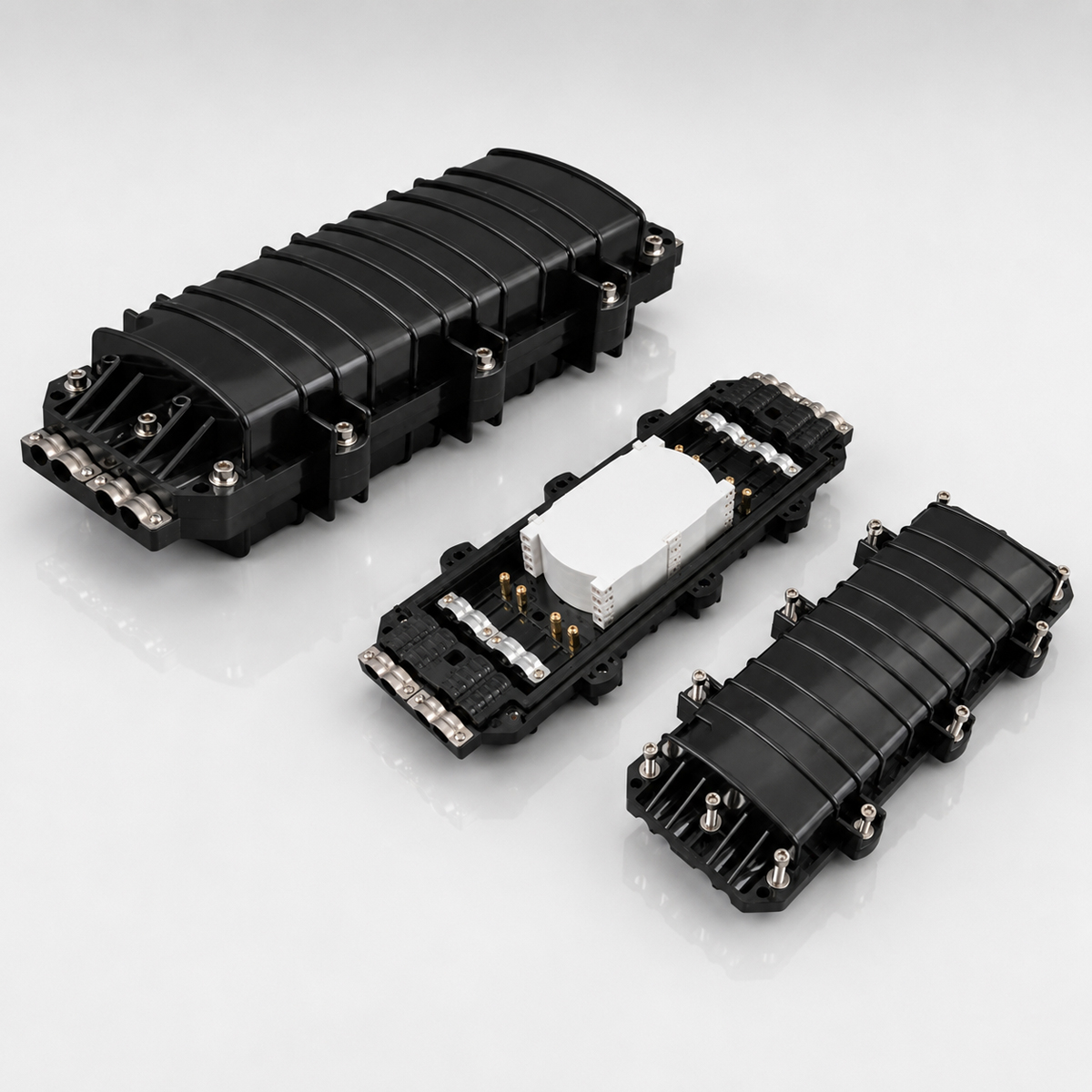

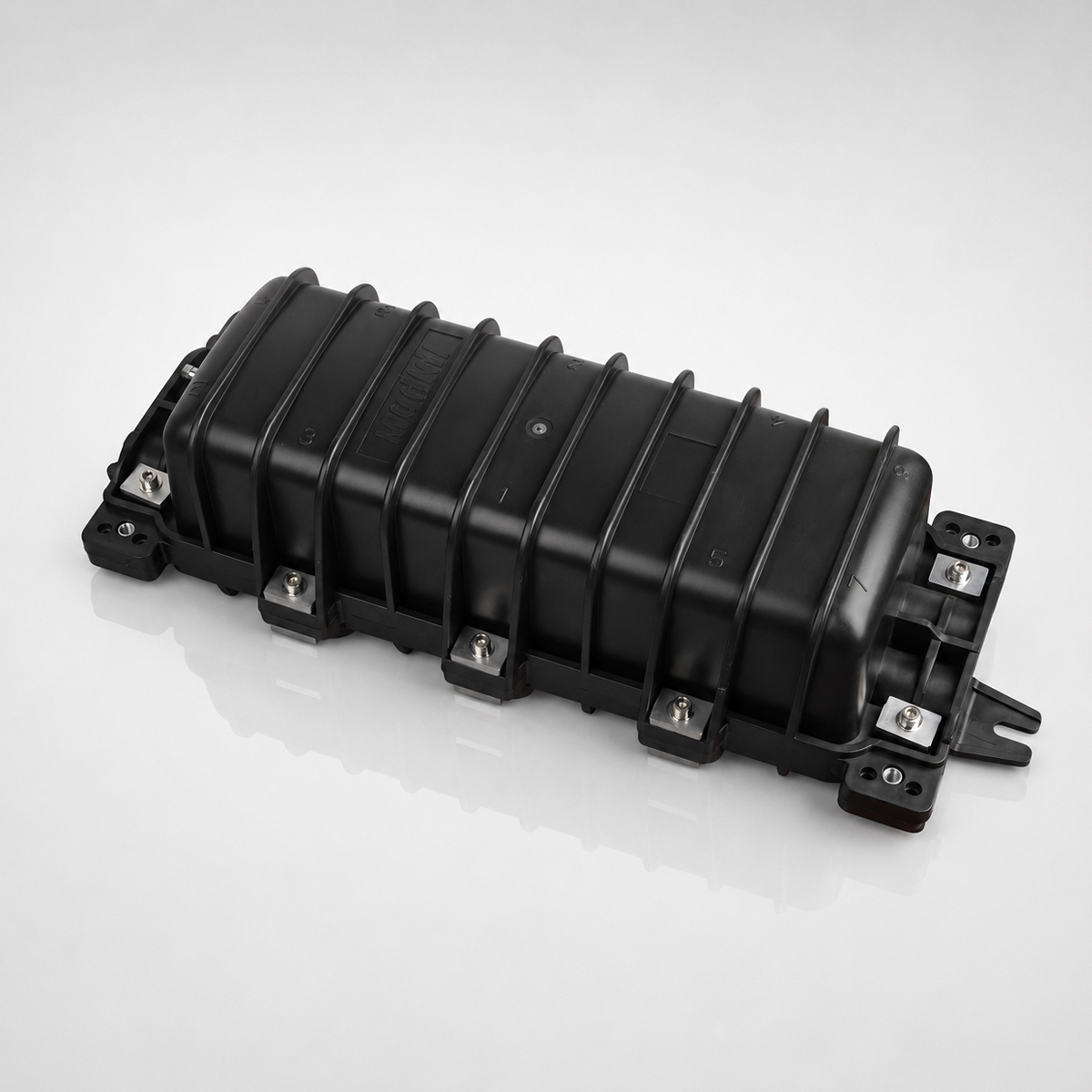

Joint Closure Flat Type

Flat-profile fiber splice enclosure | Capacities: 96/144 Core | IP68 | ABS & PP construction

The Joint Closure Flat Type is a high-capacity, flat-profile fiber splice enclosure designed for underground, duct, and manhole installations where a dome configuration is not suitable or practical. The wide, low-profile ABS and PP enclosure is particularly well suited to horizontal duct and underground manhole environments — offering the same IP68 weatherproof protection, heat shrink cable entry sealing, and "C" clamp base sealing as the round type, while providing a more accessible tray layout for field technicians working in confined spaces.

Need a quote or technical advice? Our team responds within one business day.

Request a Quote Email Enquiry

Specifications

Available Capacities	96 Core \| 144 Core

Key Features

Flat type configuration
Dimensions: 380mm x 280mm x 125mm
Material: ABS & PP
Cable entry ports: 6/8 round + 1 oval
Cable entry sealing: Heat shrink
Base sealing: "C" clamp provisioned

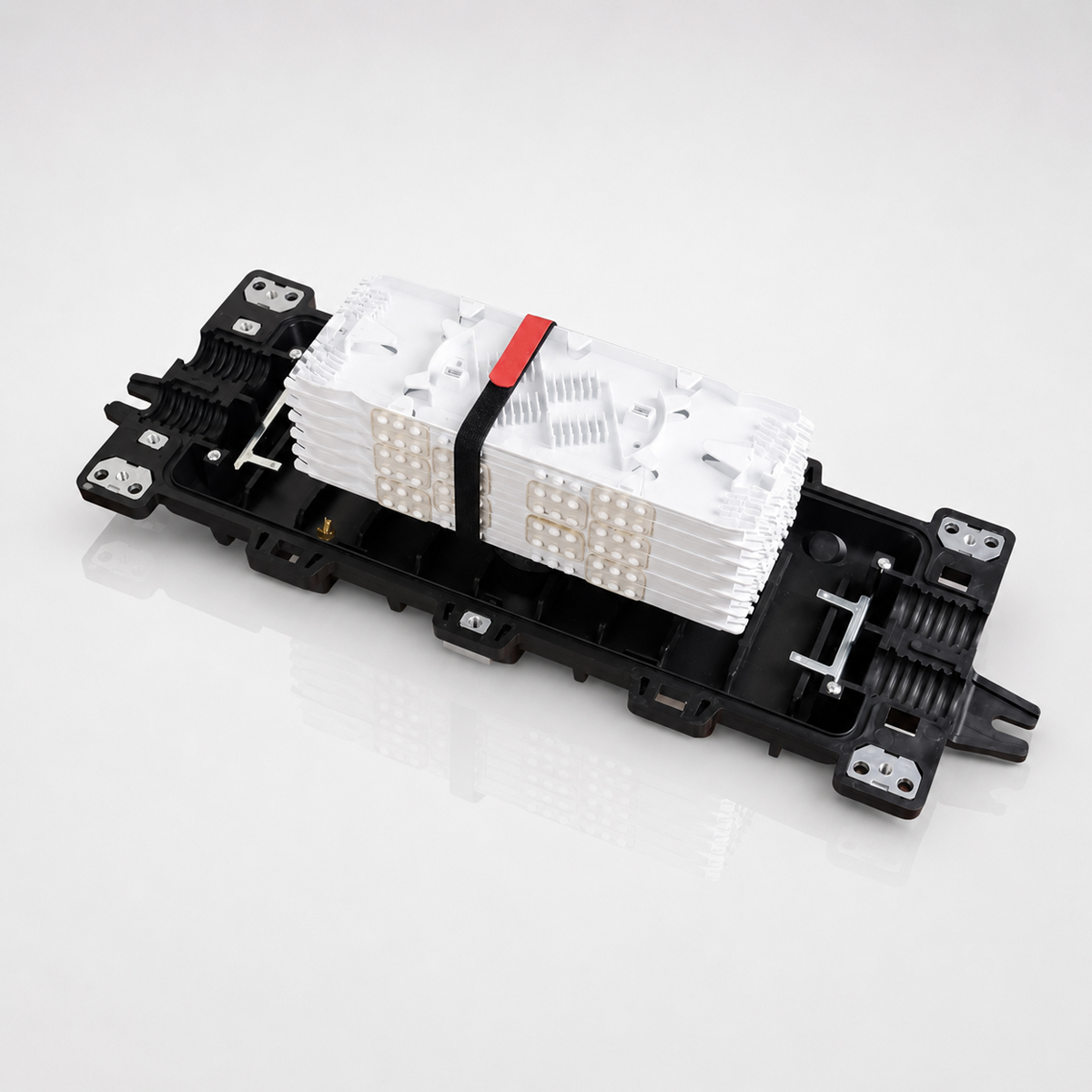

Number of splice trays: 8 / 12
Compatible with all types of single fiber optic cable
Applicable for cut, uncut, and taut sheath applications
Central strength member fastening system included
Ribbed closure construction — lightweight and structurally robust
Chemical and UV attack resistant
Complete splicing accessories kit provisioned
Minimum tool installation
Pole mount and wall mount compatible (optional)
Protection class: IP68
Operating and storage temperature: -25°C to +65°C
Relative humidity: ≤85% at +30°C

Use Cases

Applications & Deployments

Telecom networks

Underground duct and manhole fiber splice points

Buried fiber cable splice management

Pipeline fiber optic junction enclosures

High-density backbone and feeder network splice infrastructure

BharatNet underground broadband infrastructure

Compatible for pole mounting and wall mounting (optional)
