LC Connector Boot

Protective strain relief boot for LC connectors — multiple sizes.

The LC Series Fiber Optic Connector Boot is a protective strain relief component fitted to the tail end of the LC connector — providing mechanical protection to the fiber cable at the point of entry into the connector body. Available across multiple sizes to suit different cable diameters and installation requirements.

Need a quote or technical advice? Our team responds within one business day.

Request a Quote Email Enquiry

Key Features

Available boot types: LC 0.9mm Boot, LC 2.0mm Boot, LC 3.0mm Boot, LC UNIBOOT Boot

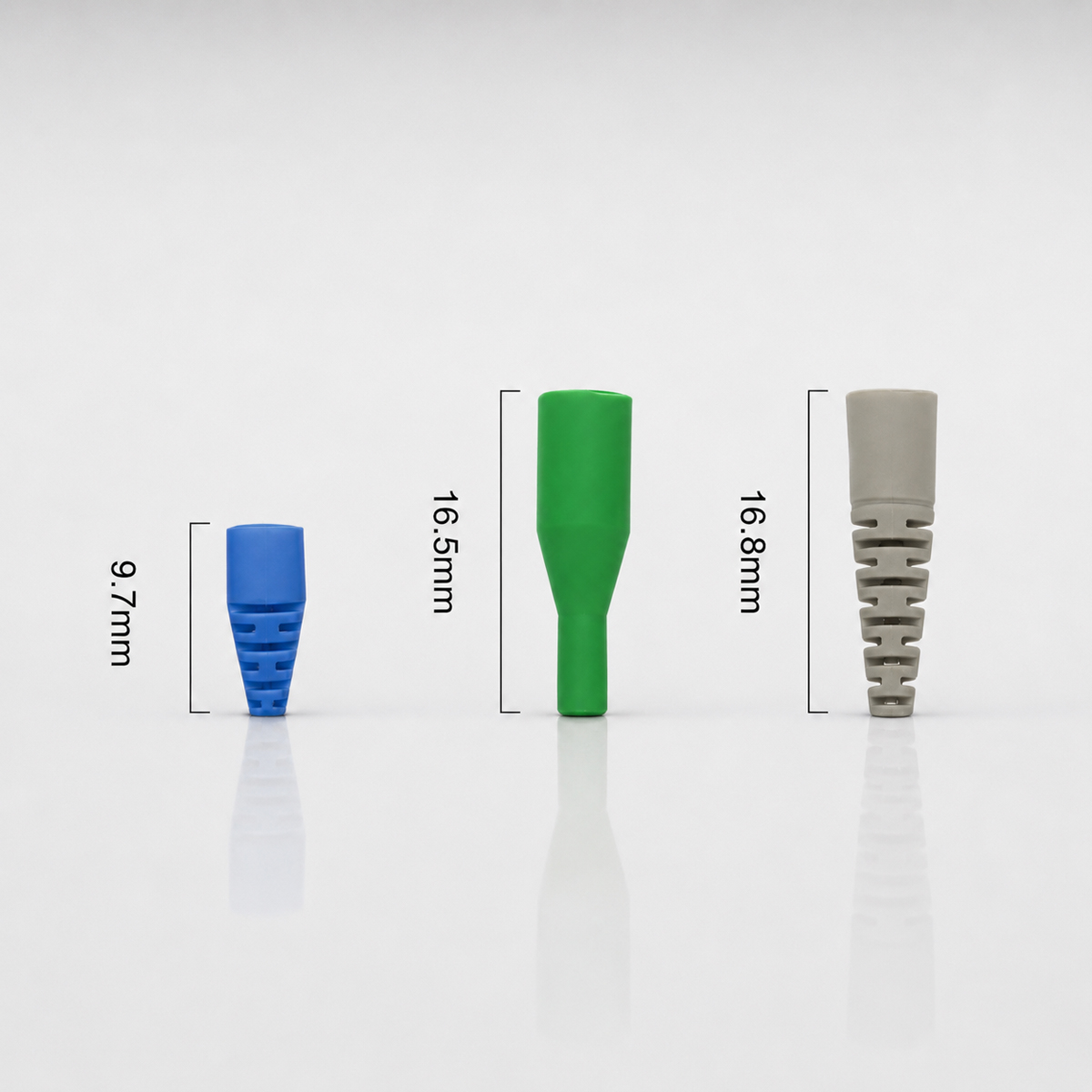

LC 0.9mm Boot sizes: 9.7mm, 16.5mm, 16.8mm

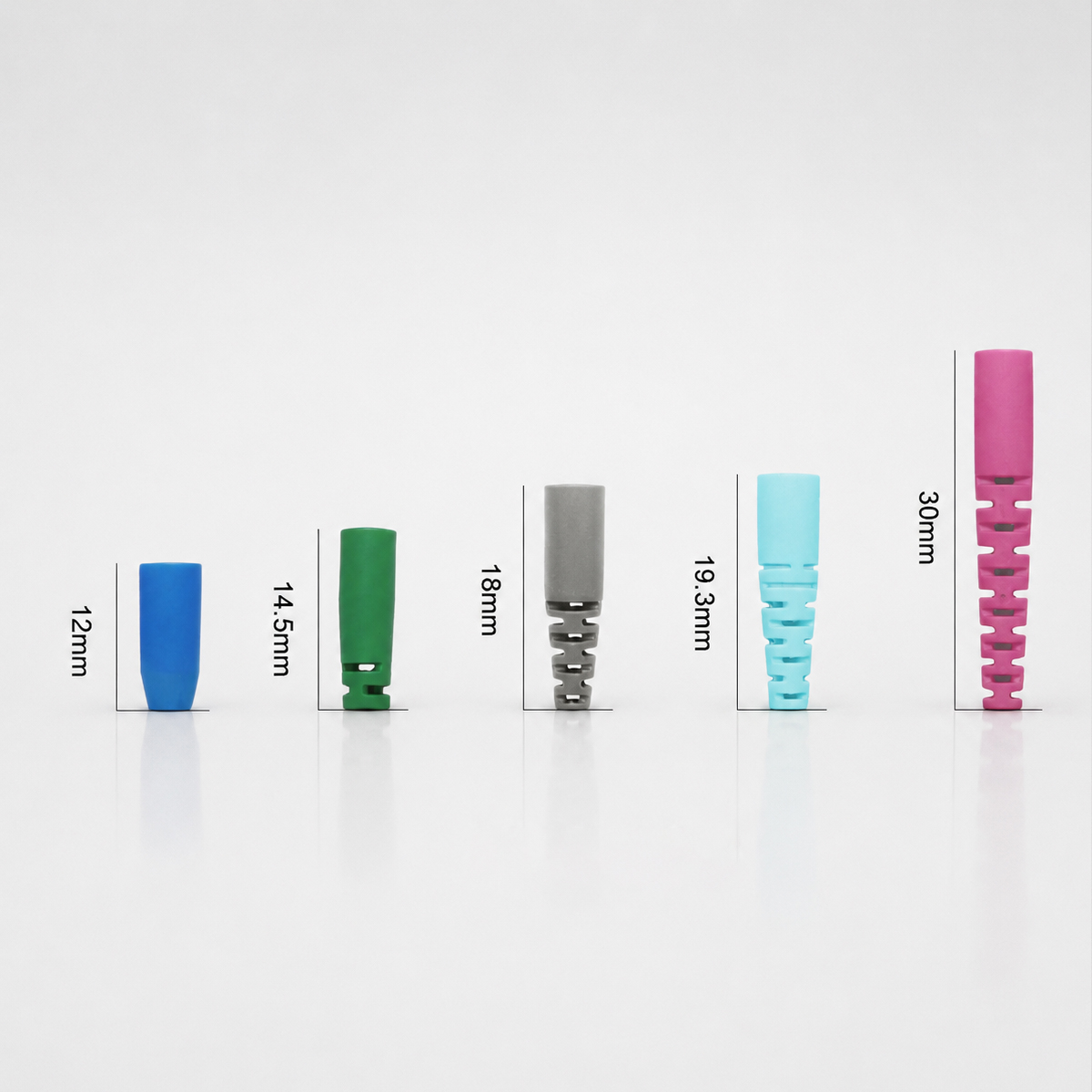

LC 2.0mm Boot sizes: 12mm, 14.5mm, 18mm, 19.3mm, 30mm

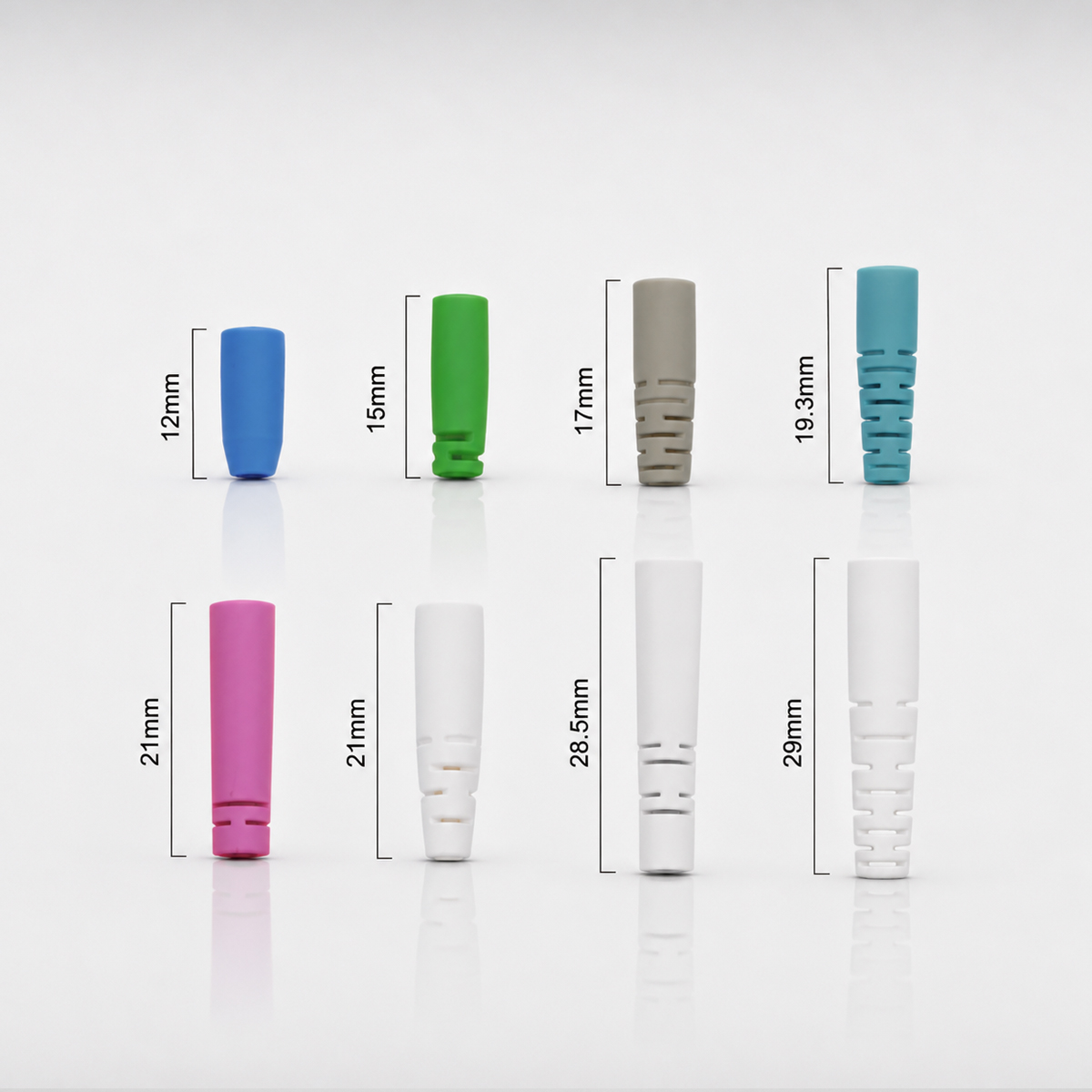

LC 3.0mm Boot sizes: 12mm, 15mm, 17mm, 19.3mm, 21mm, 28.5mm, 29mm

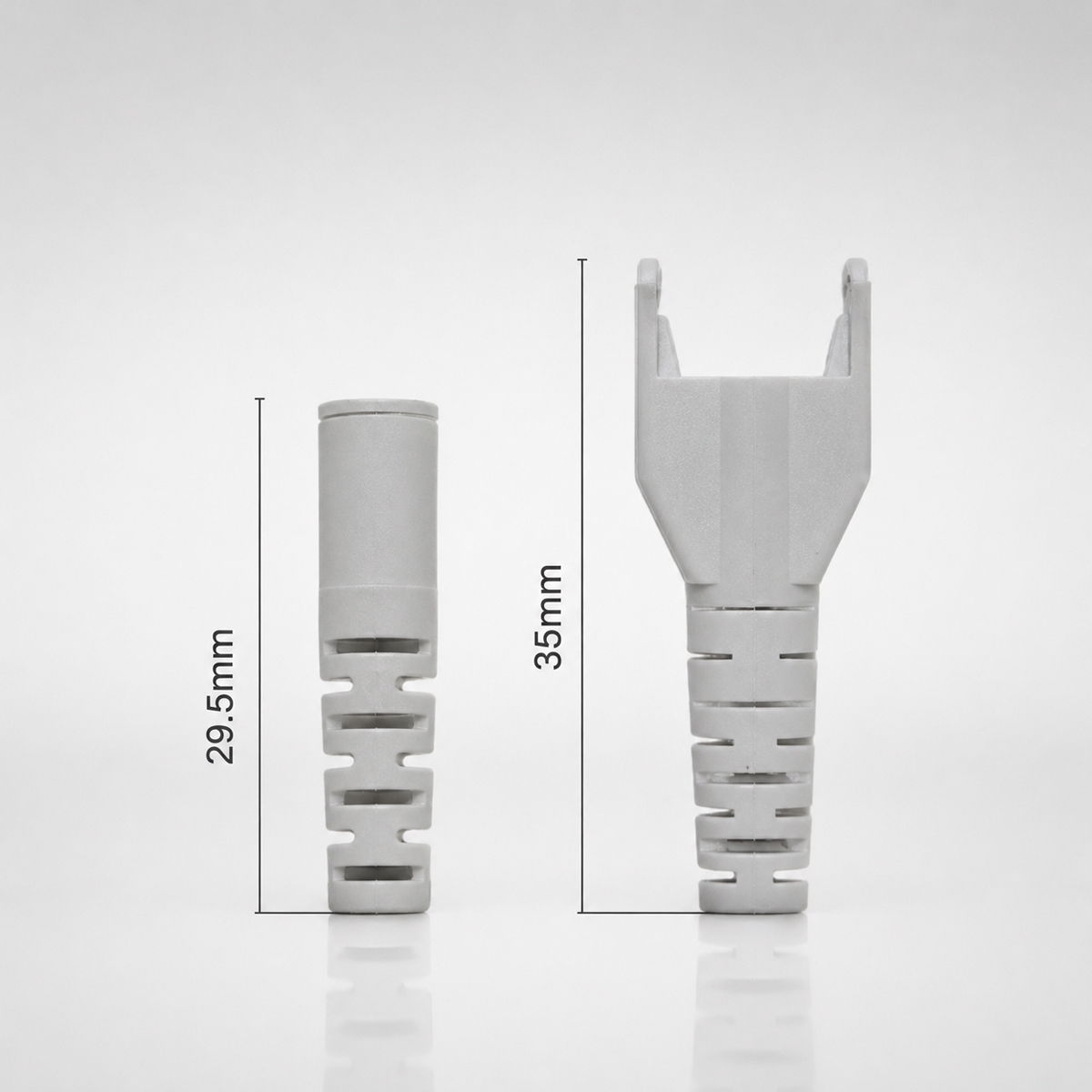

LC UNIBOOT Boot size: 29.5mm, 35mm
Colour options (housing & boot): LC/UPC (Blue), LC/APC (Green), MM (Beige), OM3 (Aqua), OM4 (Violet), OM5 (Lemon Green)
Available cable diameters: 0.9mm, 1.2mm, 2.0mm, and 3.0mm
Colours customisable on request

Use Cases

Applications & Deployments

Strain relief for LC connector fiber cable entry points

Protection against cable bending and mechanical stress at the connector tail

Suitable for all LC connector installation environments
