Ruggedised, weatherproof outdoor telecom enclosure — IP55/IP65, integrated power & cooling.

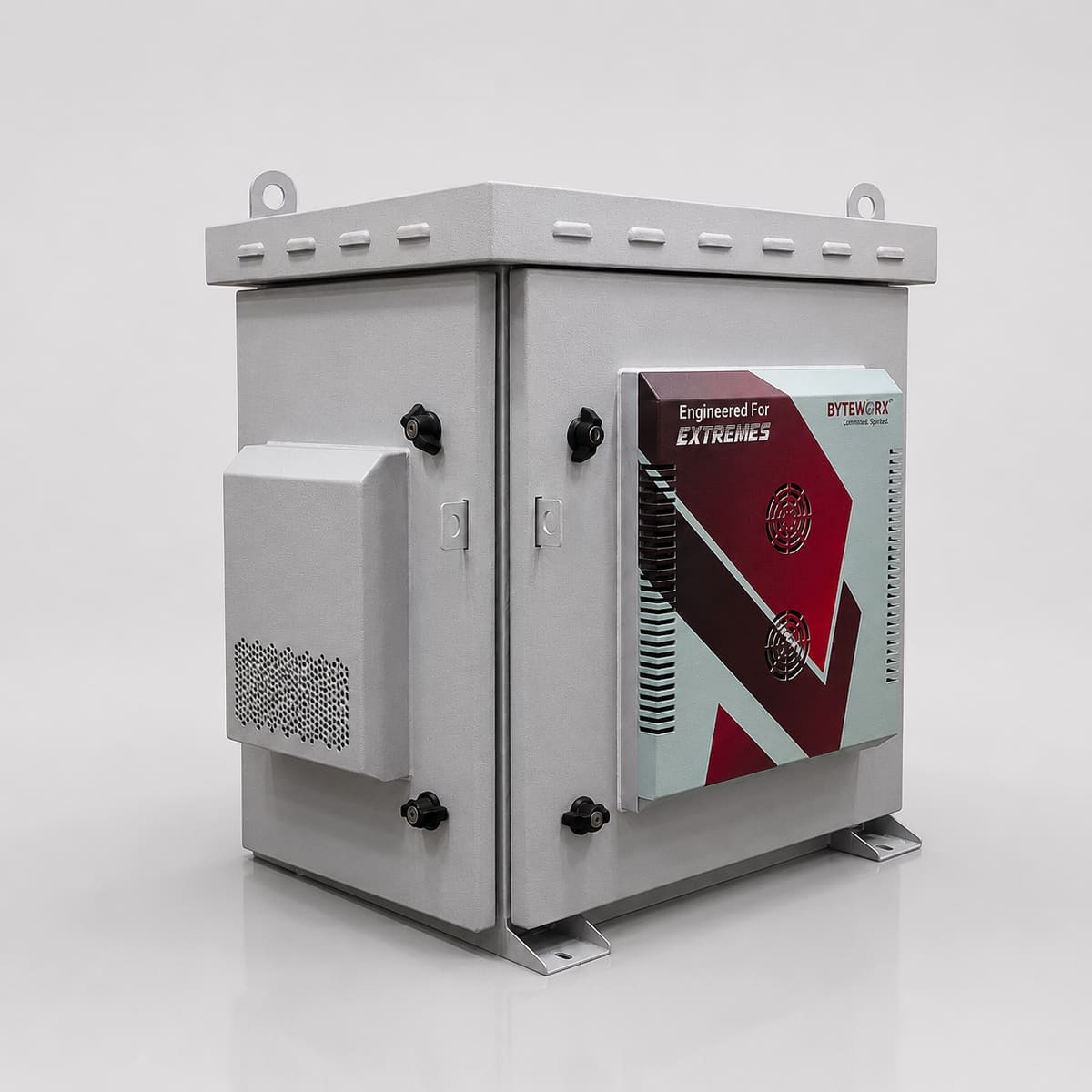

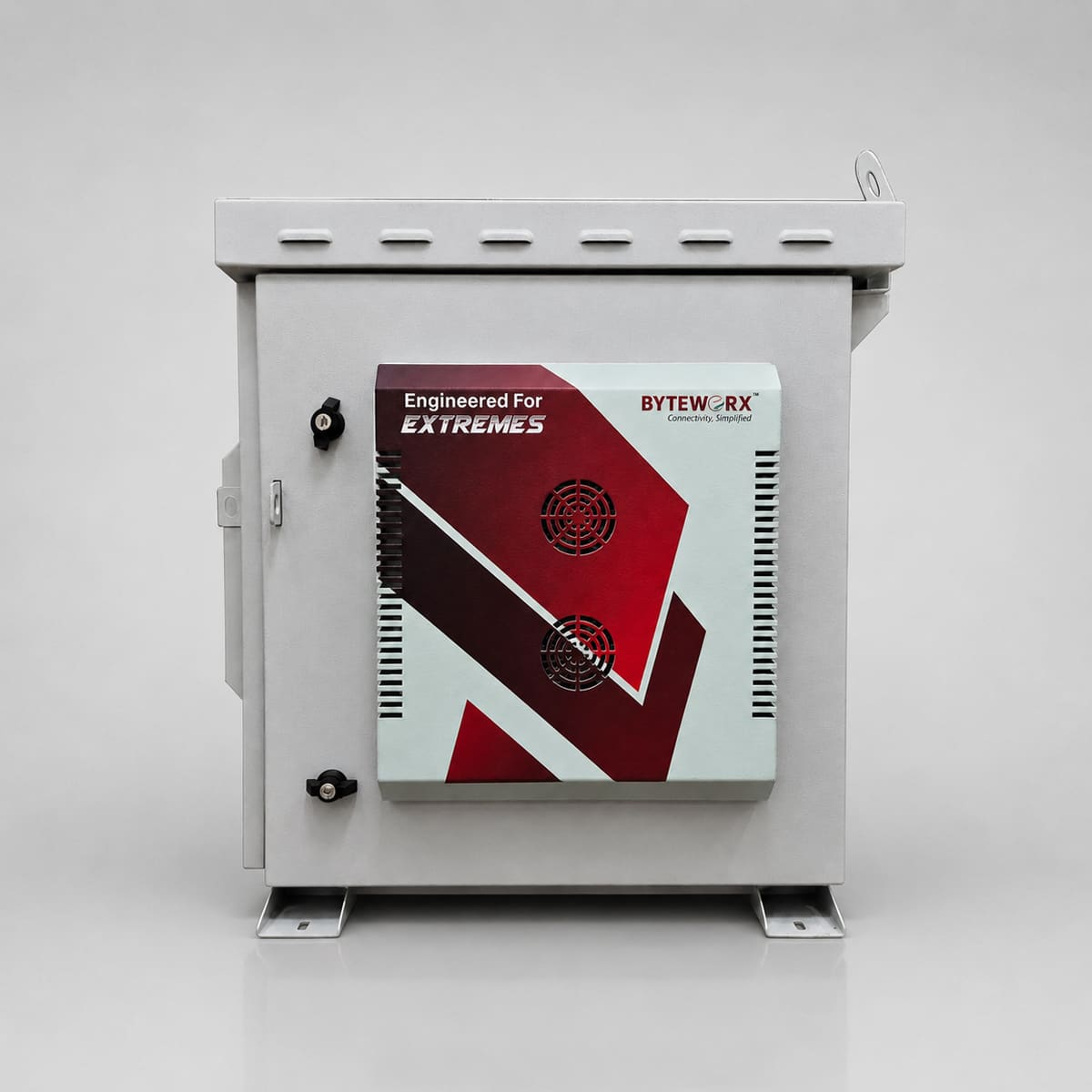

An Outdoor Telecom Cabinet (ODC) is a ruggedised, weatherproof enclosure designed to house, protect and power critical telecom equipment deployed in outdoor field environments — from urban rooftops and remote cell sites to highway infrastructure and coastal installations. Outdoor telecom cabinets provide a secure, controlled environment for equipment such as OLTs, routers, power supplies and batteries, enabling reliable, uninterrupted operation even in demanding outdoor conditions.

At Byteworx | Custom Wraps, every ODC is engineered and configured to the deployment site — enclosure size, mounting type, cooling method, power backup and cable entry are built around what the project actually needs, not a fixed catalogue spec. Our cabinets combine weatherproof structural integrity, integrated thermal management, secure equipment housing and flexible power configurations into a single field-ready enclosure.

Need a quote or technical advice? Our team responds within one business day.

Request a Quote Email Enquiry

Key Features

IP55 rated outdoor protection (IEC 60529 compliant) — sealed against dust, water and harsh weather so equipment stays safe year-round
Compact enclosure, typically around 626 x 375 x 650 mm (H x W x D) in aluminium or steel, with 5U to 6U of 19-inch rack space — sized up or down to your equipment load
Fan-based thermal management (2 x 190 CFM DC fans as standard), with air-conditioned cooling available for higher heat-load deployments
Heavy-duty 2- or 3-point locking with an in-built, flush-fitted padlock — built to deter tampering in unmanned field locations
Outdoor-grade RAL 7035 matt finish with 80–100 micron PP coating — built to withstand India's coastal, high-humidity and high-temperature environments
Integrated lithium-ion battery backup (typically 48V/15Ah, ~720Wh) — compact, rack-mountable and sized to the backup duration your site requires
Optional redundant, IP67-rated power modules (up to 500W each) with wide input voltage tolerance — built for unstable grid power in remote and rural sites
Built-in fibre management support (up to 24-core FMS as standard) for clean, protected fibre termination
Customisable cable gland plate (typically 4 to 6 glands) — size and count adapted to each site's cabling
Flexible mounting — floor, wall or pole-mount
DC and AC power system compatibility
Note: The configuration above reflects a typical deployment — every ODC we build is engineered around your site's exact space, power and mounting requirements, not a fixed spec sheet.

Use Cases

Applications & Deployments

Telecommunications base stations, photovoltaic energy, intelligent transportation, power facilities, and industrial automation

BTS shelter and outdoor telecom equipment housing

5G small cell and micro-cell outdoor deployments

Fiber aggregation and distribution points in outdoor environments

Remote and off-grid telecom site power and equipment housing

Smart city infrastructure nodes

Highway and road-side telecom infrastructure

Urban rooftop and pole-mounted telecom equipment housing

BharatNet and government broadband last-mile outdoor infrastructure

Industrial and utility outdoor network deployments

Coastal and high-humidity environment telecom installations

The configuration above reflects a typical deployment — every ODC we build is engineered around your site's exact space, power and mounting requirements, not a fixed spec sheet.
